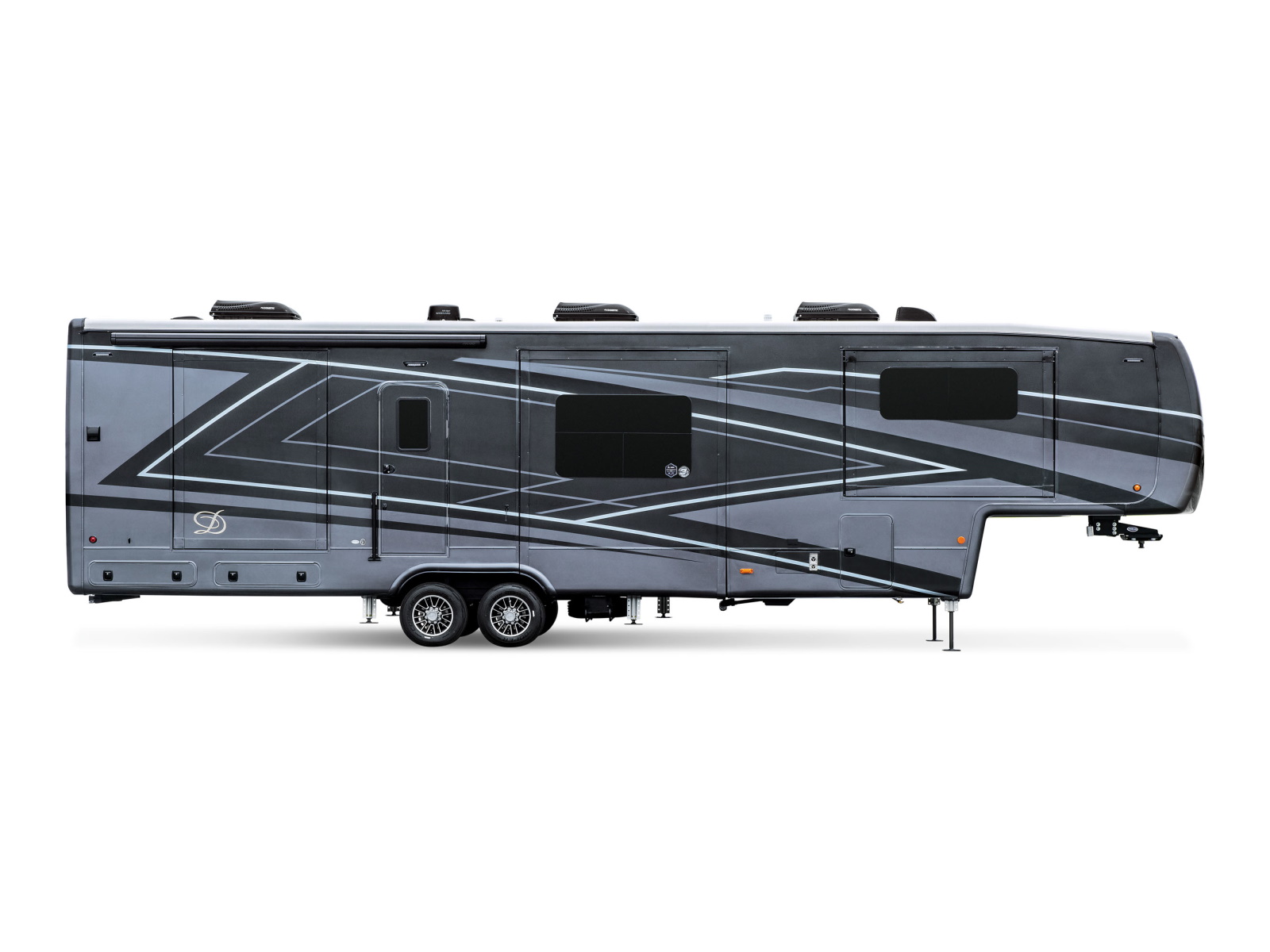

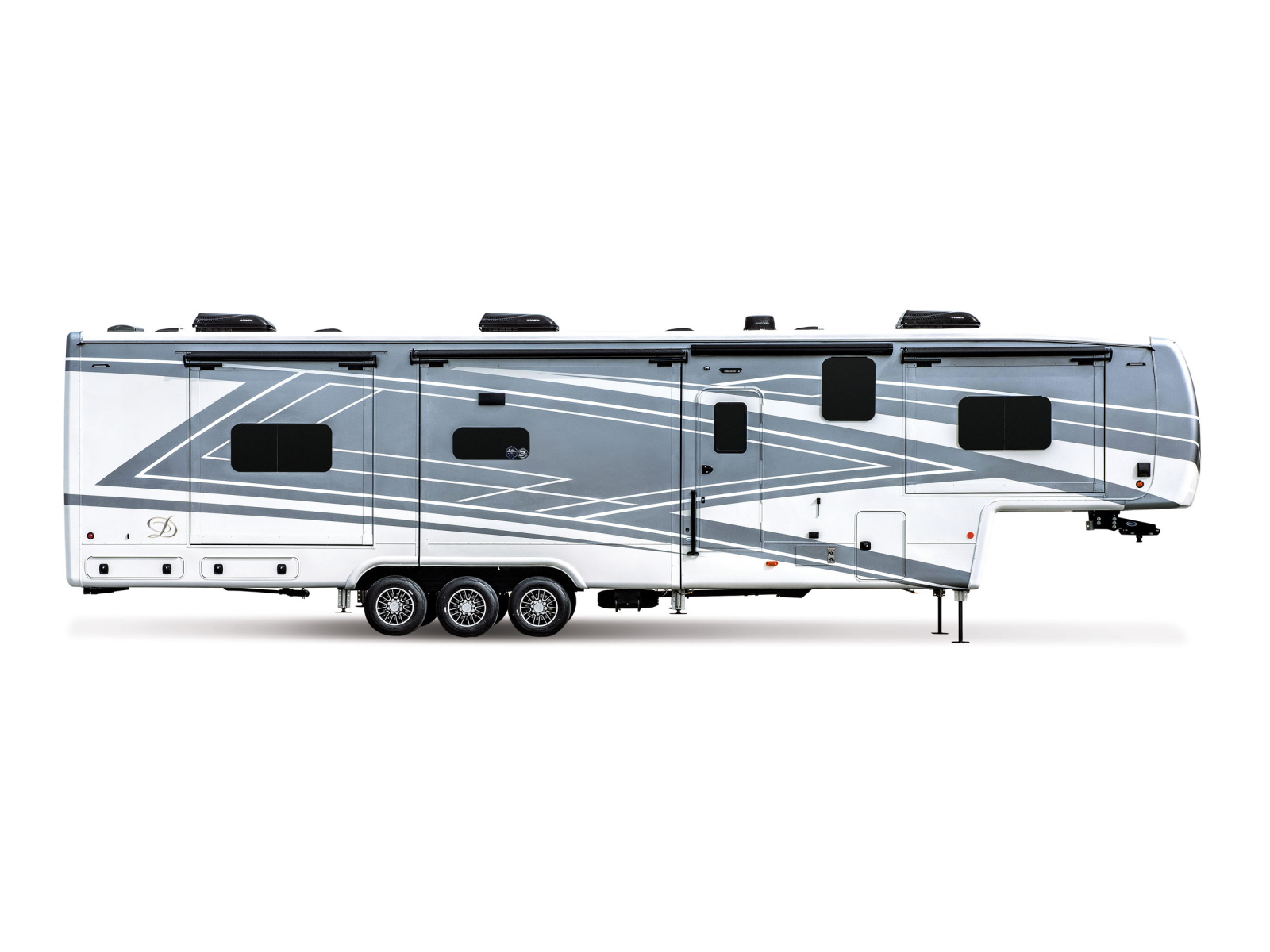

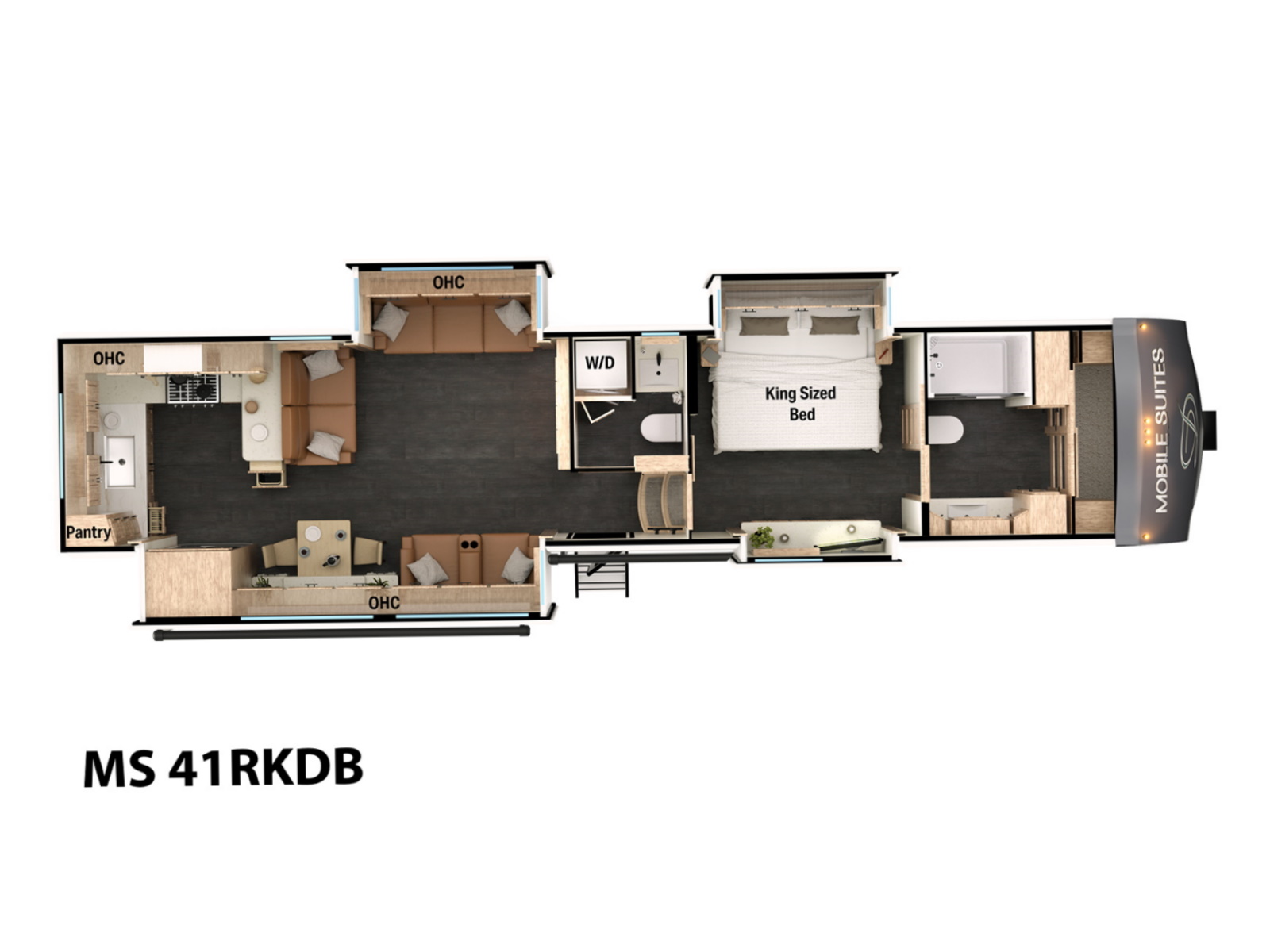

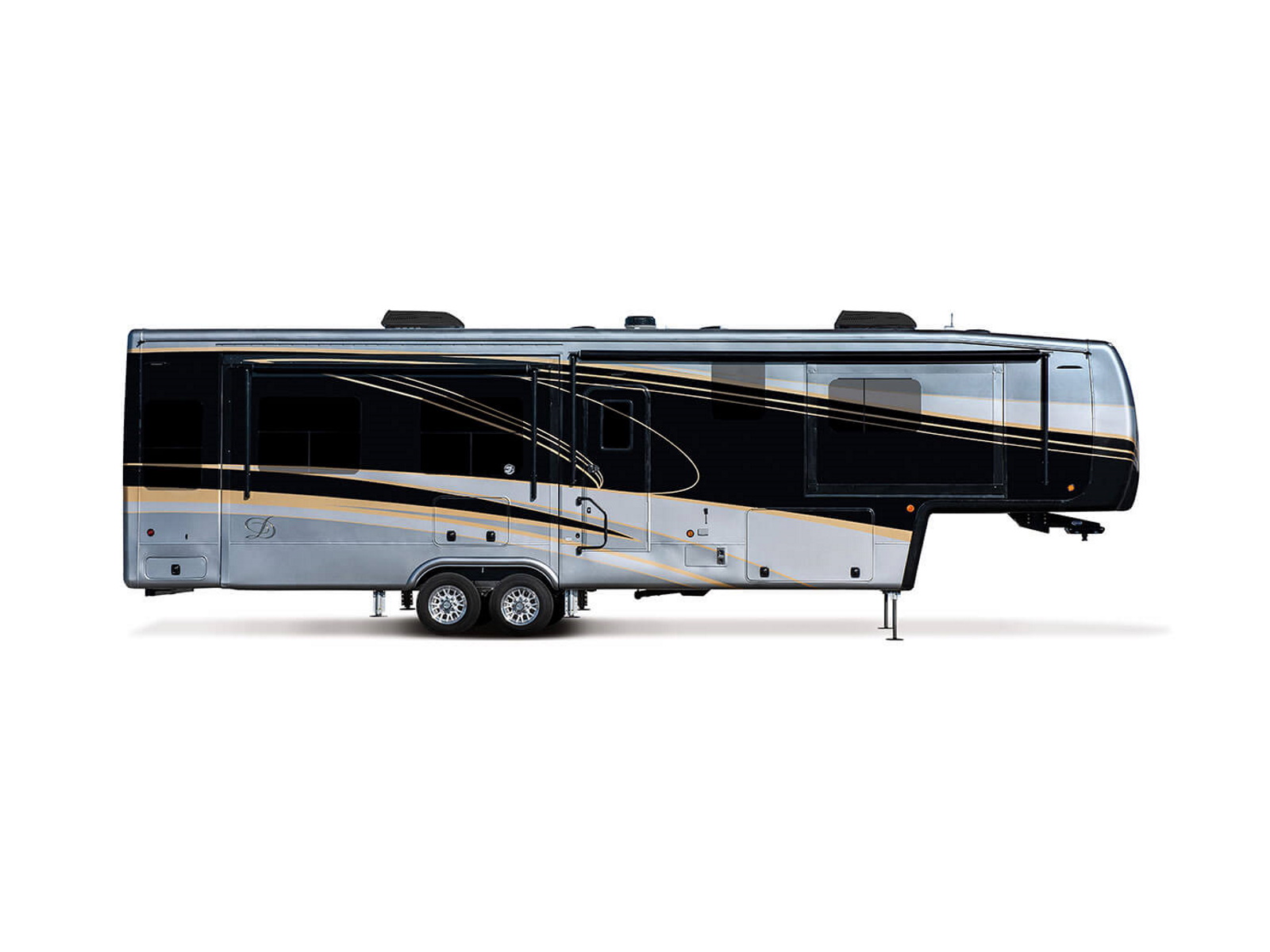

2026 DRV MS 41RKDB Capetown Veil

2026 DRV MS 41RKDB Capetown Veil

Begin your journey with the one that started it all… the DRV Mobile Suites.
The Mobile Suites is the foundation that DRV is built upon. It offers all the comforts of home, all the conveniences of a residential kitchen and the peace of mind that comes from knowing you’ve chosen the best construction available on the market today.

The foundation is the most important part of your home.
It needs to be strong, reliable, and able to last the tests of time. DRV’s custom-engineered 15” triple box tube frame measures 101” wide – the largest, most rigid fifth wheel frame in the industry. This design eliminates flex around the pin box, and allows us to frame even the upper deck with steel to open up the storage compartment, providing you with space to fit all your personal belongings.

Features May Include:

Top Selling Features

• 15″ Triple Stacked Box Tube Frame
• 3″ Thick Floor
• 3 1/4″ Thick Walls/Slides
• 1/4″ Thick Gelcoat Azdel Fiberglass w/Wood Backer
• 1/4″ Monsanto® Fome-Cor Vapor Barrier (Eliminates Condensation)
• Seamless, 1-Piece Rubber Roof
• Custom Painted Exterior w/Clear Coat
• Frameless Tinted Safety Glass Windows
• Residential 5 Duct Heating System w/6″ Ducting
• 17 1/2″ H-Rated Tires

Framing/Running Gear

• 17 1/2″ H-Rated Tires
• Heavy Duty Grease Bolt Shackles w/Bronze Bushing
• Kodiak® Automotive Disc Brakes
• Heavy Duty Axles
• Commercial Grade E-Z Lube® Hubs
• 15″ Triple Stacked Box Tube Frame
• 101″ Wide Body
• Industrial Hydraulic System for Jacks & Lower Level Slides
• Electric Bedroom Slide
• Slide Outs w/Select Push Button Controls
• Pinless Hydraulic Front Landing Jacks at 5 Degree Outboard Angle

Construction - Floor

• 3″ Thick Floor
• 14″ O.C. Floor Aluminum Floor Joists
• Screwed & Glued Joist Construction
• 5/8″ Tongue & Groove Plywood Flooring
• Residential Perimeter Heating
• Residential Rated R29 Insulation

Construction - Walls/Slides

• 3 1/4″ Thick Walls/Slides
• 16″ O.C. Stud Spacing
• Screwed & Glued Aluminum Stud Construction
• 1/4″ Monsanto® Fome-Cor Vapor Barrier (Eliminates Condensation)
• 1/4″ Thick Gelcoat Azdel Fiberglass w/Wood Backer
• Residential Rated R16 Insulation

Construction - Roof

• 16″ O.C. Rafter Spacing
• Residential Rated R25 Insulation
• 1/2″ Plywood Roof Overlayment
• Seamless, 1-Piece Rubber Roof
• Soft-Touch Vinyl Ceiling, Including Interior Slide-Out Ceilings

Exterior Features

• Straight Roof Line w/8′ Tall Interior Slide Out Height
• High Density Insulation
• Custom Painted Exterior w/Clear Coat
• Gelcoat Fiberglass Molded Caps
• Frameless Tinted Safety Glass Windows
• Five Exterior Security Lights
• Commercial LED Exterior Clearance Lights
• Amber LED Front Cap Turn Signal
• LED Docking Lights
• 78″ Entry Door
• Metal Slam Door Compartment Latches
• Extra Thick Compartment Doors w/Gas Struts
• Motion Sensor LED Light Switches for Basement
• Washable Storage Compartment Liner
• Custom Enlarged Control Center w/LED Lighting
• Lend-a-Hand Exterior Grab Handle
• Power Awning w/LED Lights & Aluminum Weather Shield
• Water Pump Switch at Outside Hookup Center

Systems/Tanks

• 50 Amp Service w/Detachable Cord
• 80 Amp 12 VDC Converter
• 100 Gal. Fresh Water Tank
• 75 Gal. Grey Water Tank w/Power Flush
• 50 Gal. Black Water Tank w/Power Flush
• SeeLevel Tank Monitoring System on All Tanks
• Residential Type 1/2″ Water Lines
• Exclusive Copper Water Manifold w/Individual Shut-Off Valves
• Whole House Water Filtration System
• Multi-Switch Water Bypass System
• Slide Out Propane Tray w/Dual 40 Lb. Tanks
• 12 VDC Battery on Pull Out Tray
• 40,000 BTU Furnace w/Custom Plenum
• Residential 5 Duct Heating System w/6″ Ducting
• Forced Heat Ducting to Tanks/Water System
• Fully Ducted A/C System w/Cold Air Return
• 15,000 BTU Low-Profile Main A/C
• Wired & Ducted Bedroom A/C w/Cold Air Return
• Third A/C Prep (All Tandem Axles)
• Double 15,000 BTU Low-Profile A/Cs (Triple 15,000 BTU Low Profile A/Cs on MSEX)
• Solar Prep
• HD Roof Satellite Prep for Dual DVR Receivers
• HD Ground Satellite & Cable Prep
• Power HD TV Antenna

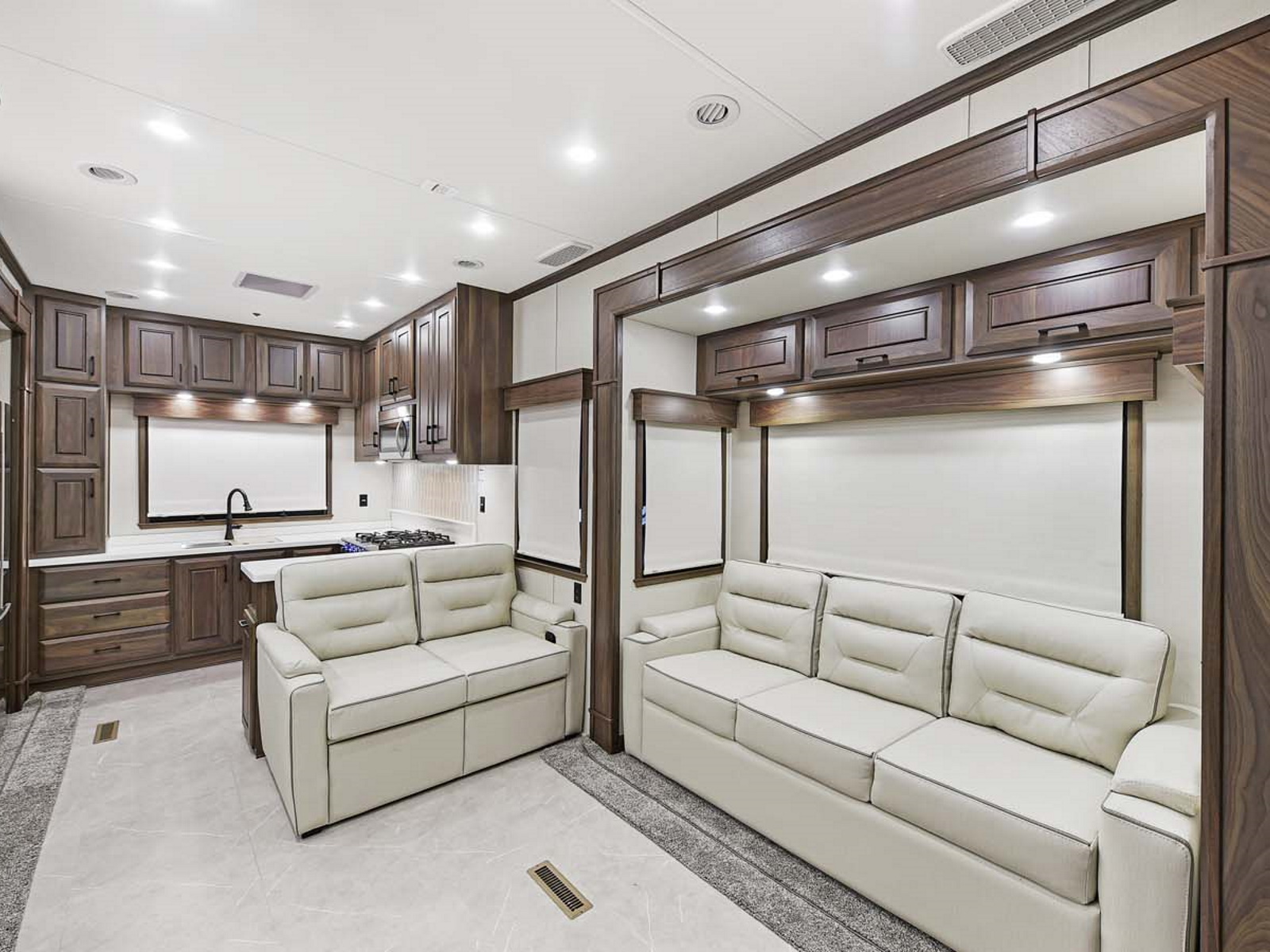

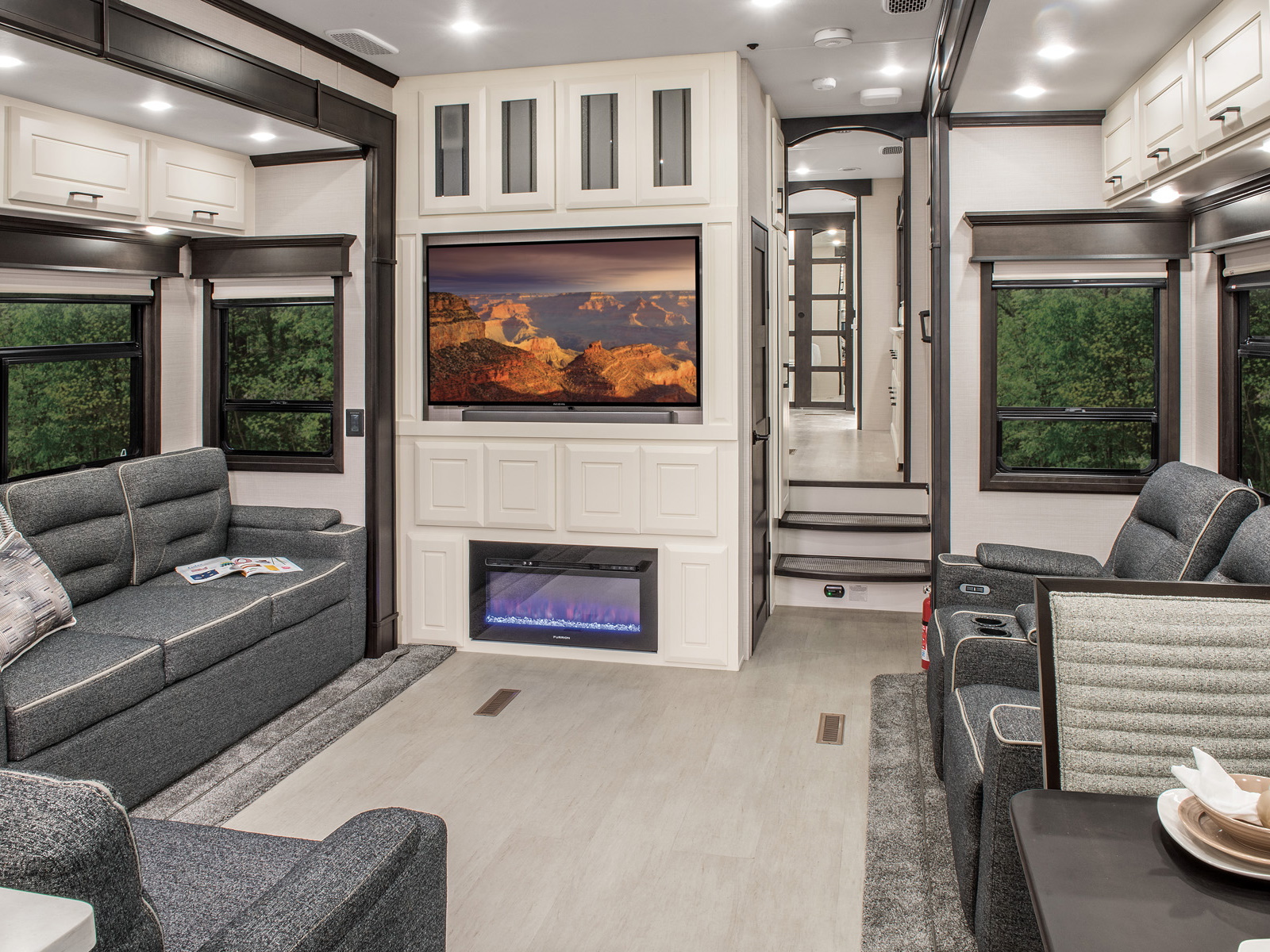

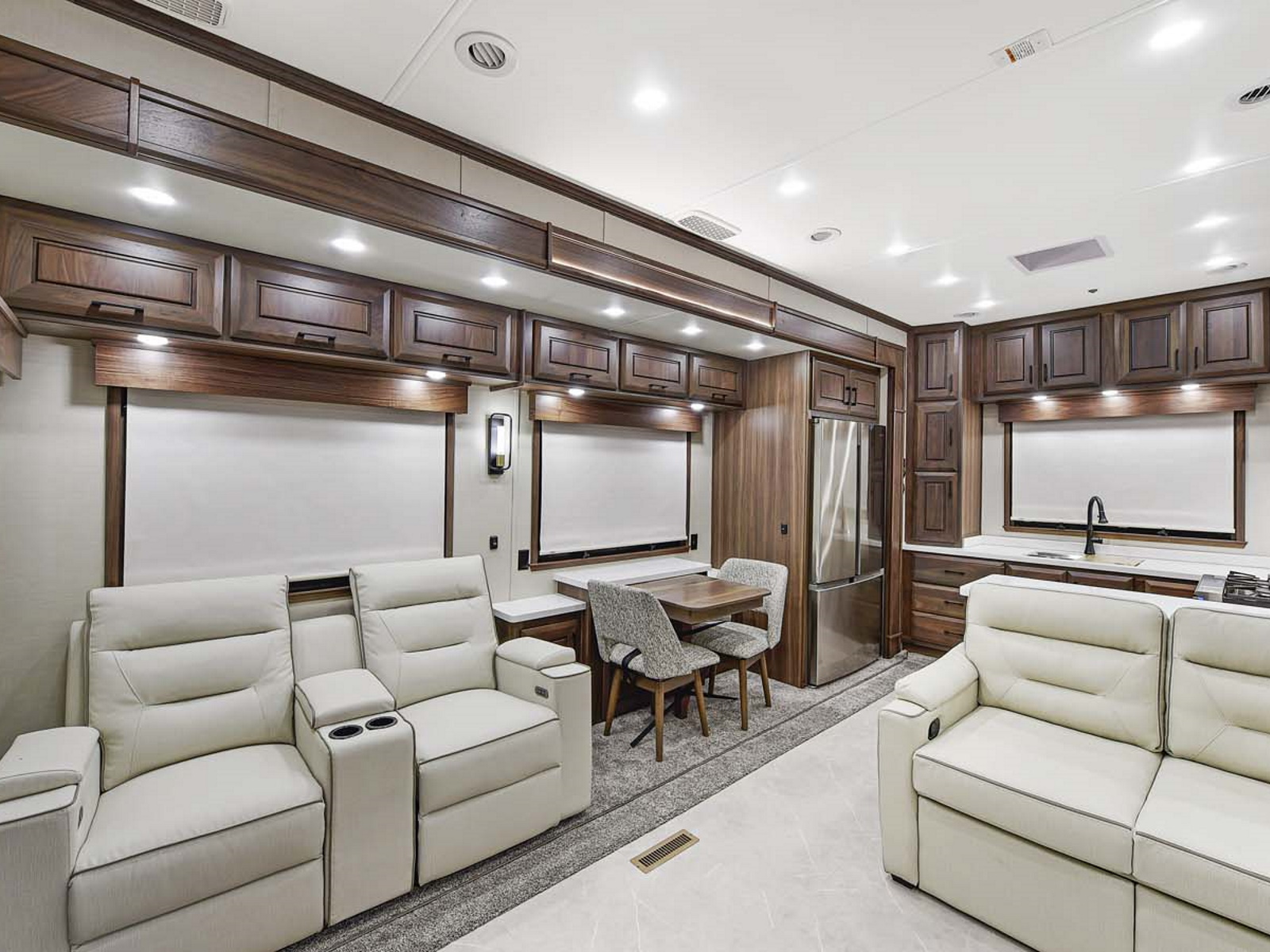

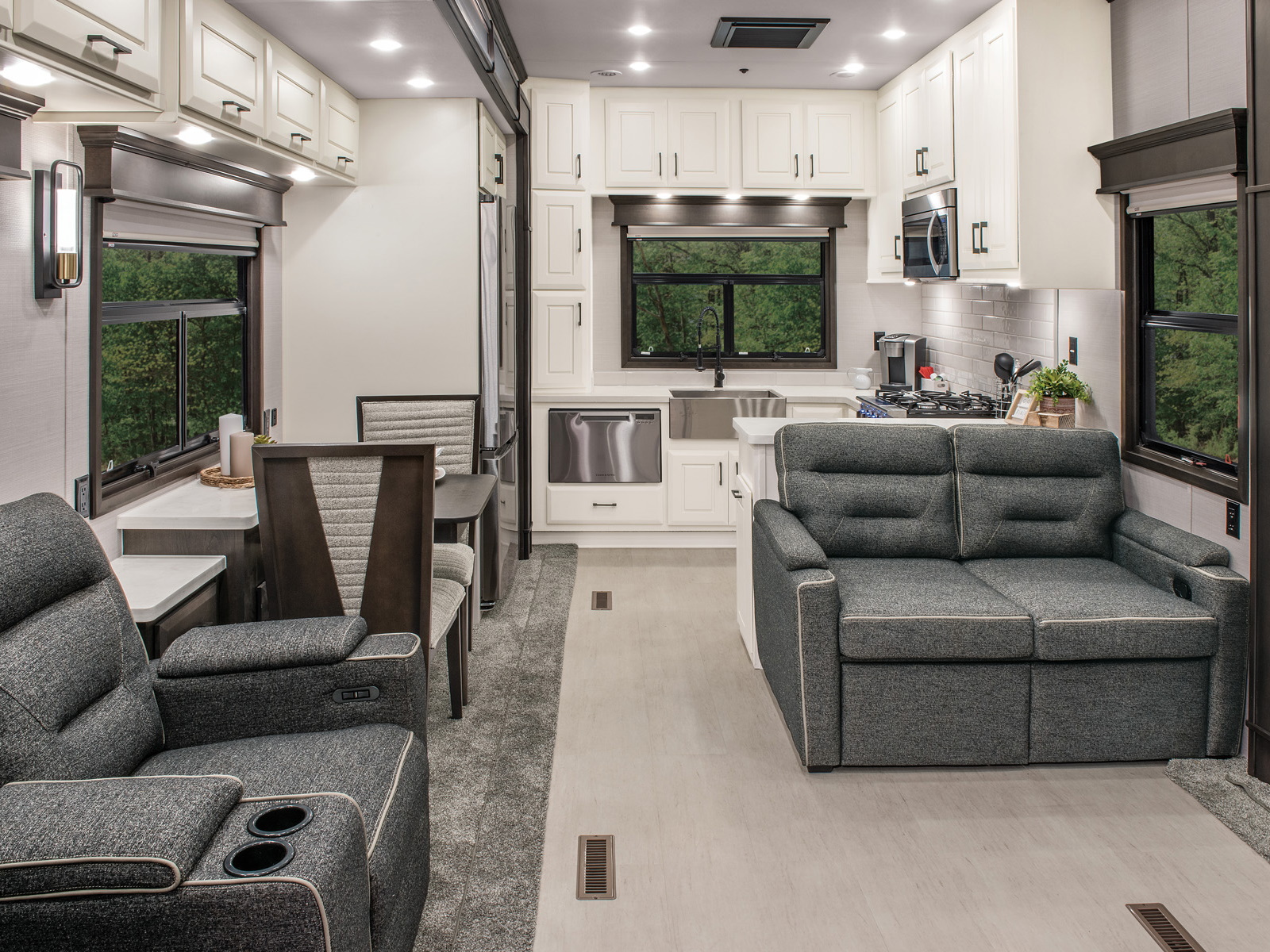

Interior - Living Room/Dinette

• Hand Laid Vinyl Plank Tile
• Residential Rebond Carpet Pad
• Plush Residential High Durability Carpet
• Toffee Grove /Chai Hickory/Italian White Solid Hardwood Cabinetry

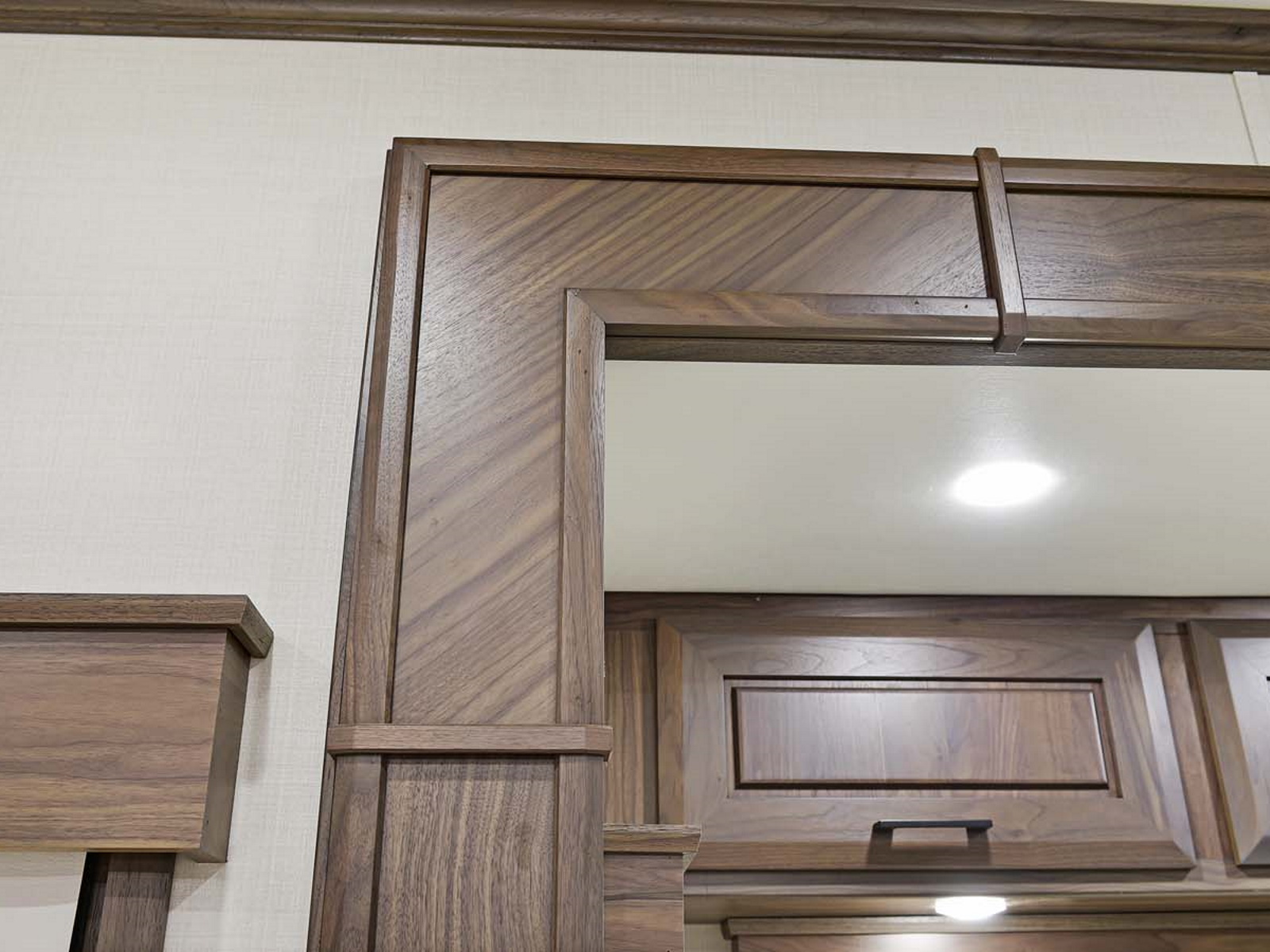

• Solid Hardwood Fascia Trim Around Slide Outs w/LED Lights
• Solid Hardwood Cabinet Stiles (Pocket Drilled/Screwed)
• Concealed Cabinet Door Hinges
• Raised Panel Cabinetry
• Soft-Close Full Extension Metal Drawer Guides
• LED Interior Ceiling Lighting on Dimmer Switches
• Decorative Wall Clock (Most Models)
• Utility Closet w/Coat Storage & Centralized Control Station (Most Models)
• Interior Ceiling Fan (Most Models)

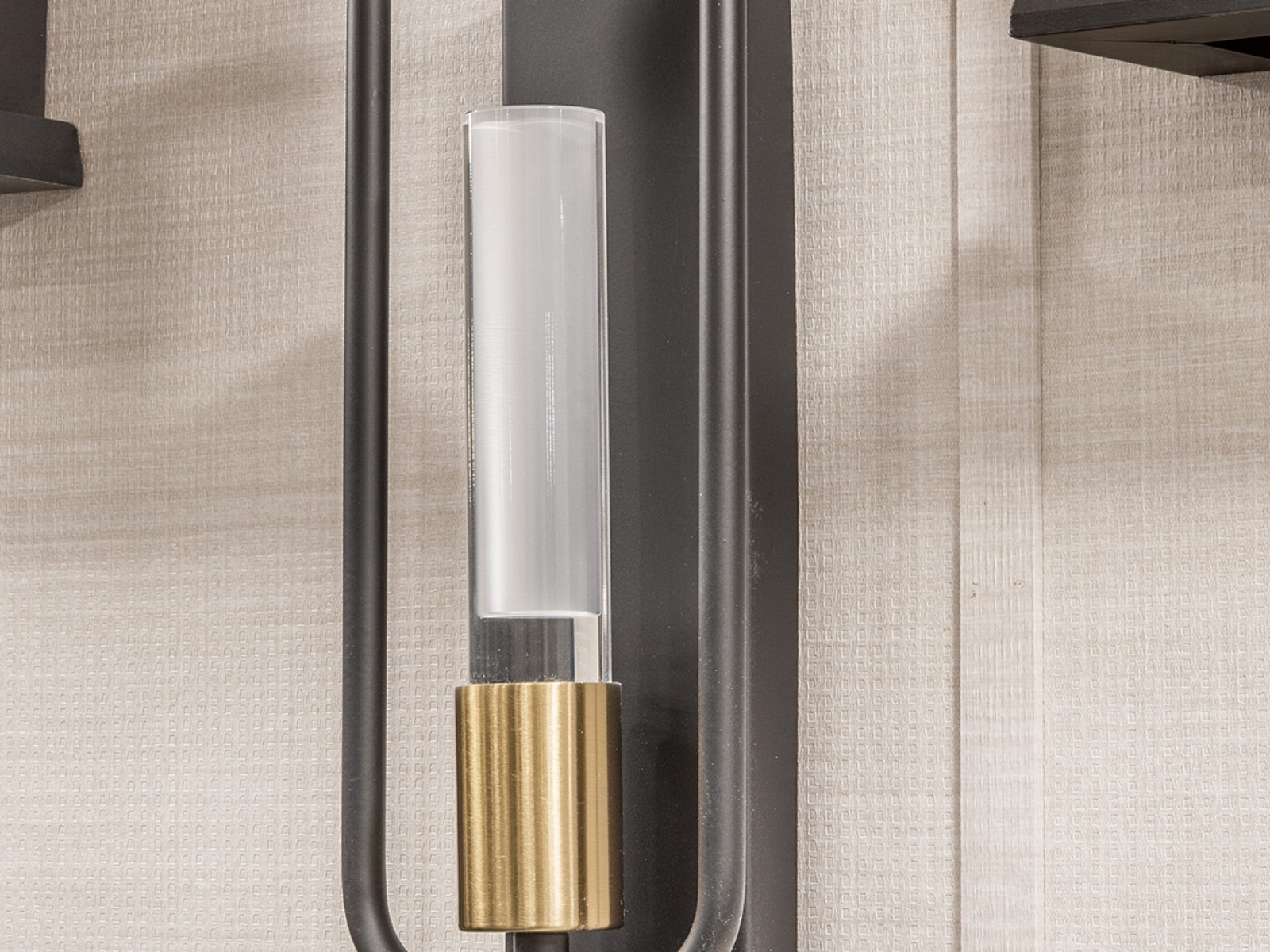

• Decorative 12V Light Sconces
• Custom Hardwood Dinette Buffet w/Solid Surface Top
• Dinette Table w/Hidden Leaf Extension
• (2) Hardwood Dinette Chairs w/Fabric Accent
• Crown Molding Throughout
• HD Wiring Throughout
• Residential Sofa w/Hide-a-Bed (Most Models)
• Residential Theatre Seating w/Center Console (Side Entertainment Models)
• Residential Recliners (Rear Entertainment Models)

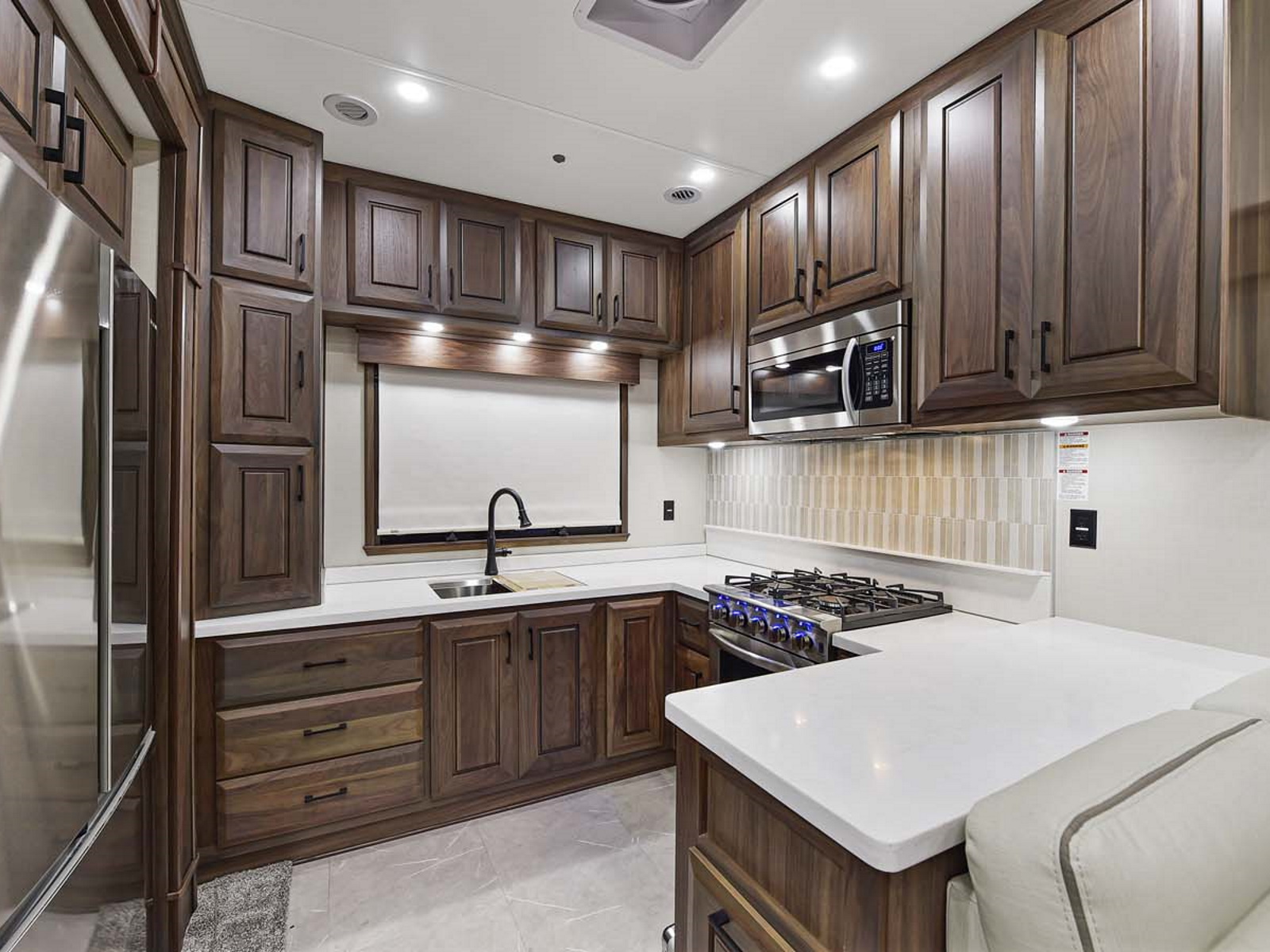

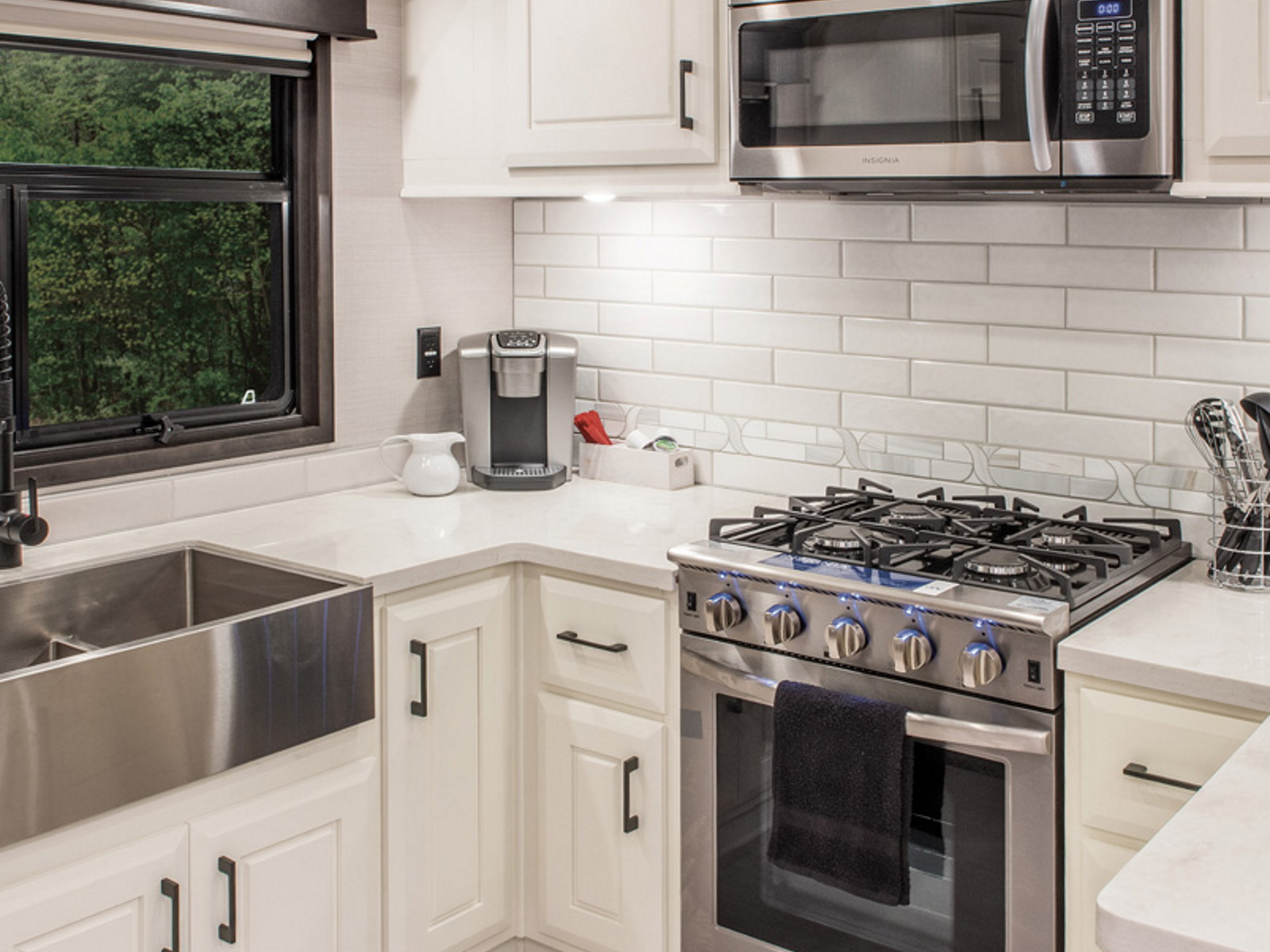

Interior - Gourmet Kitchen

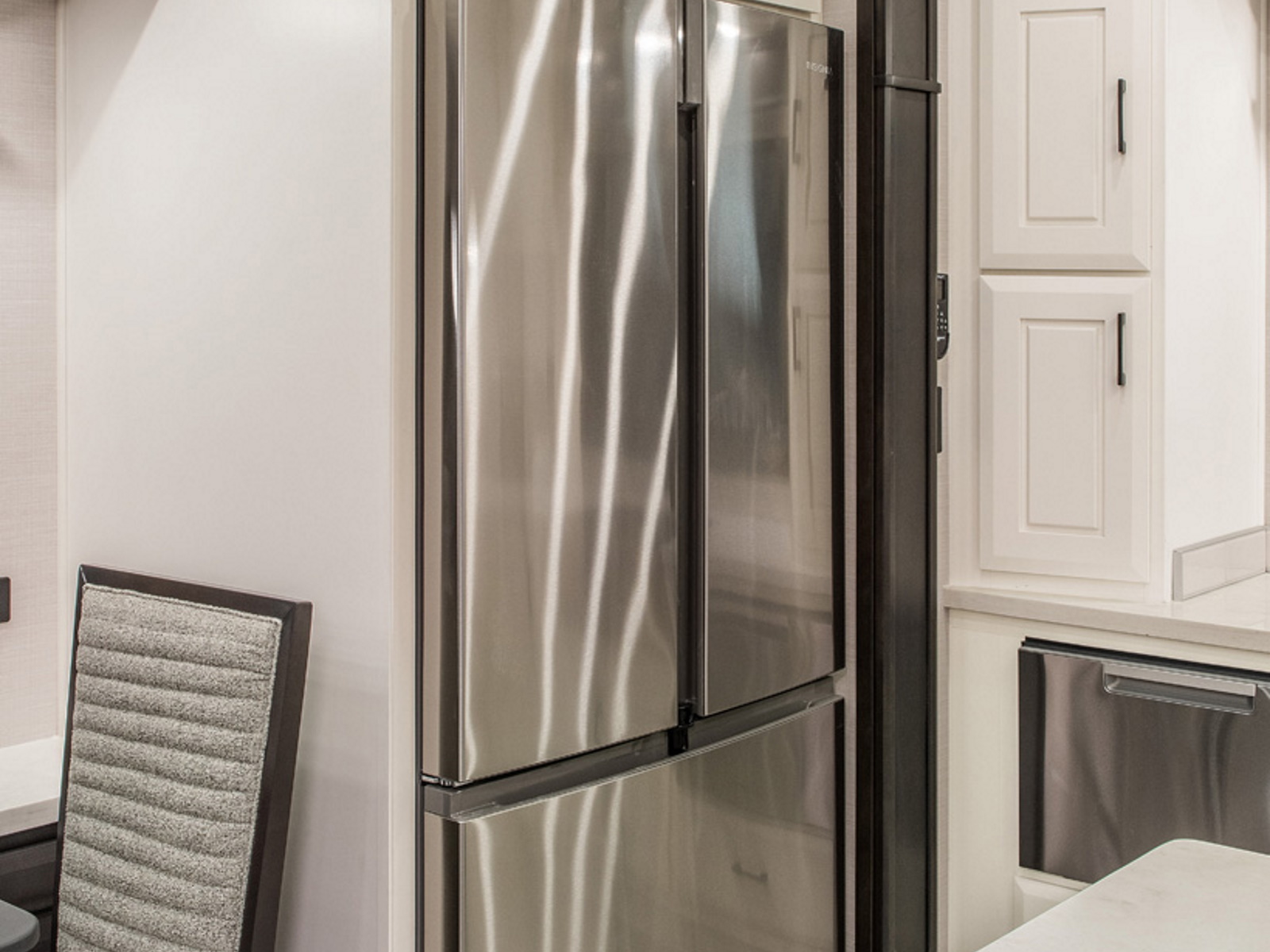

• 20 Cu. Ft. Residential Stainless Steel French Door Refrigerator

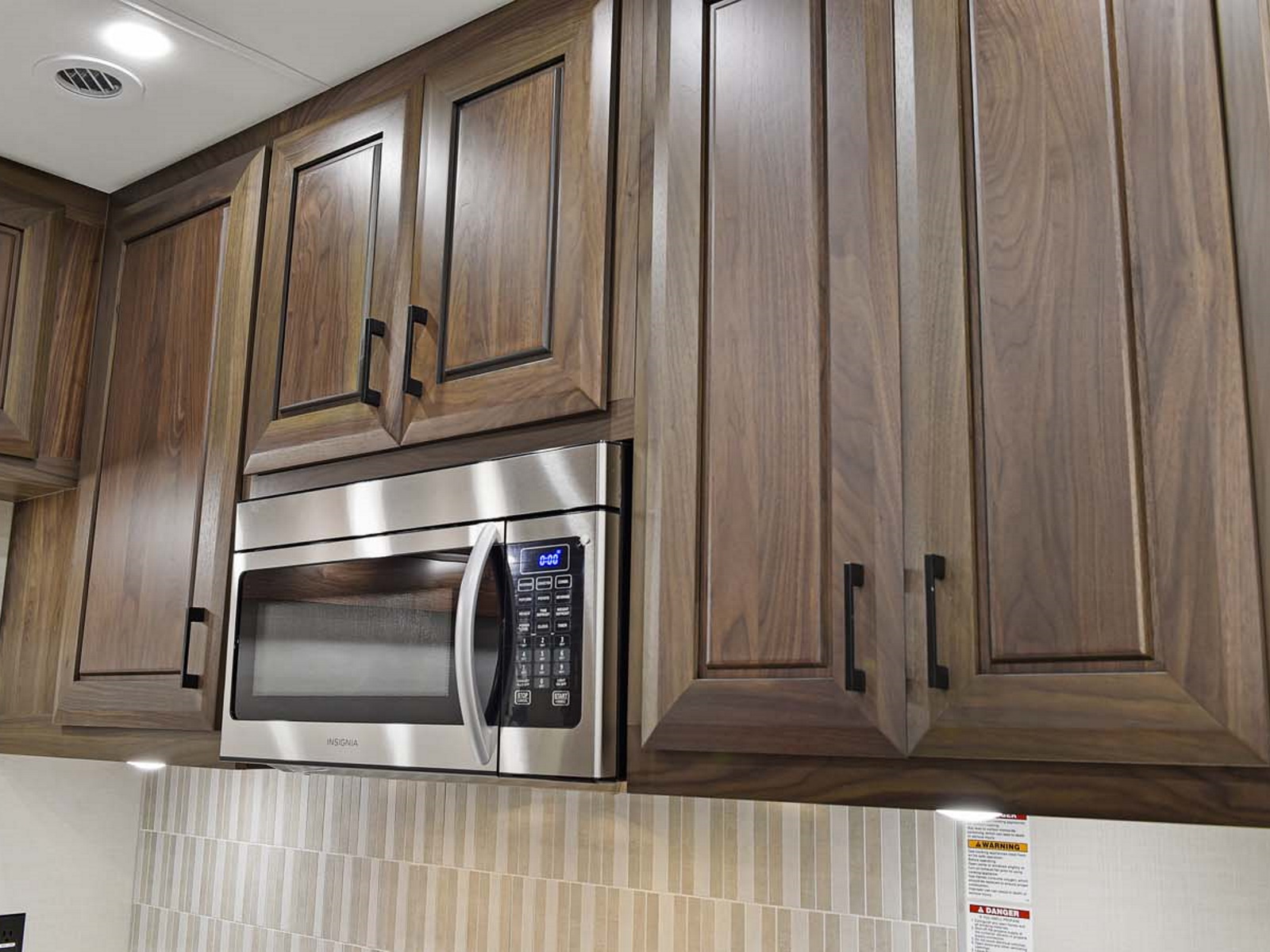

• Stainless Steel Convection/Microwave
• Stainless Steel Residential Style Gas Oven
• Stainless Steel Residential Dishwasher

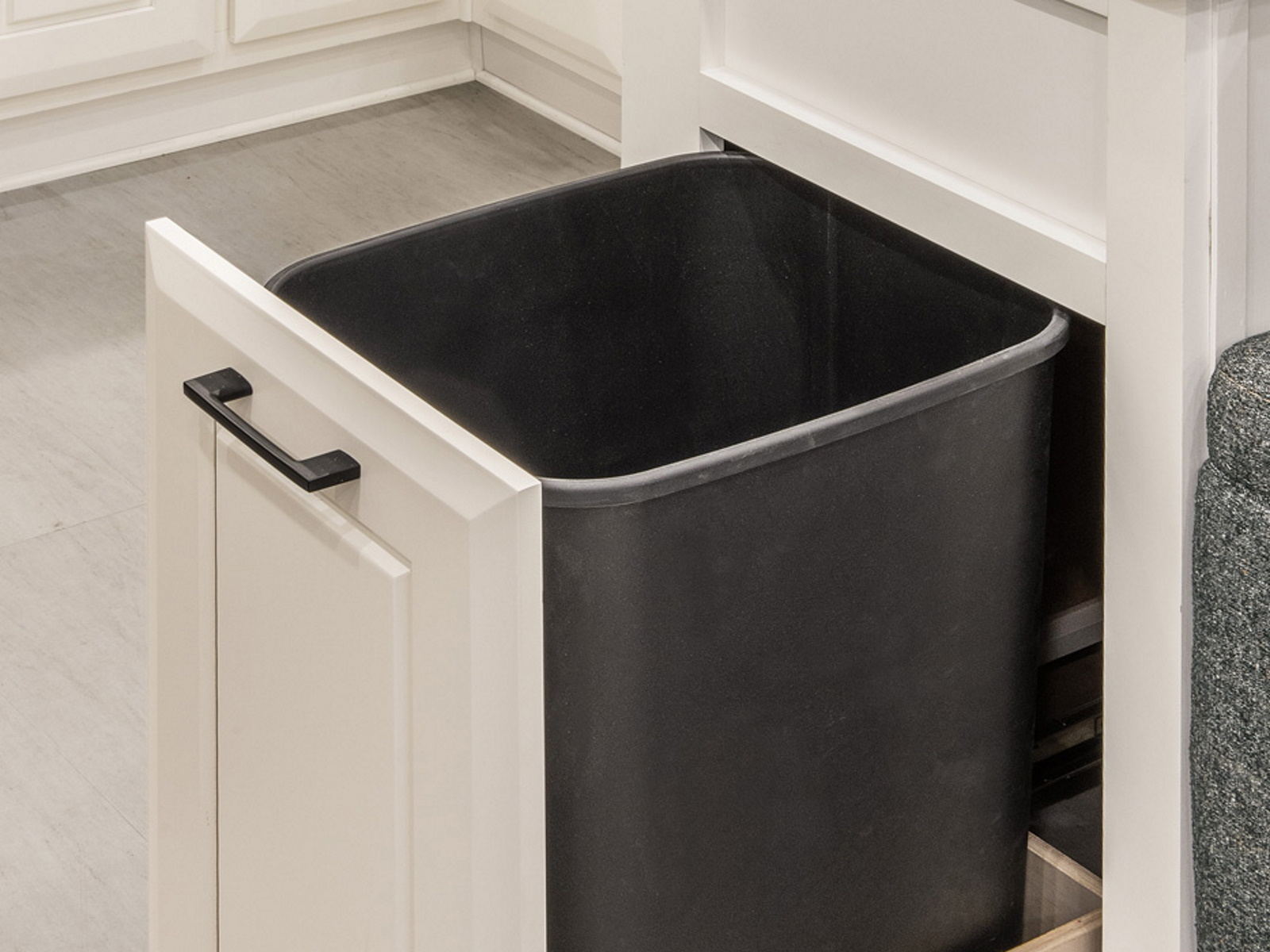

• Pull-Out 13 Gal. Garbage Can (Most Models)

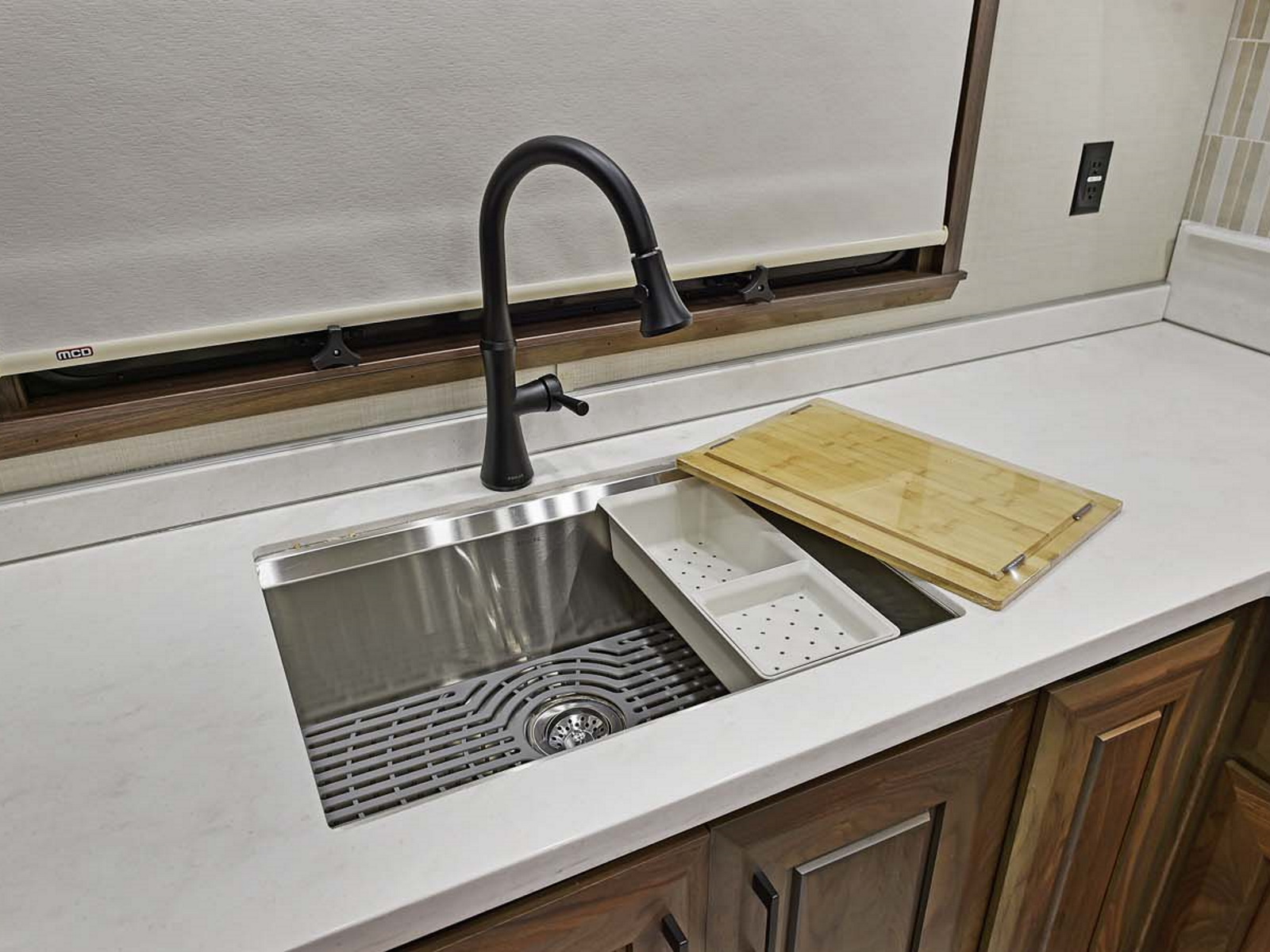

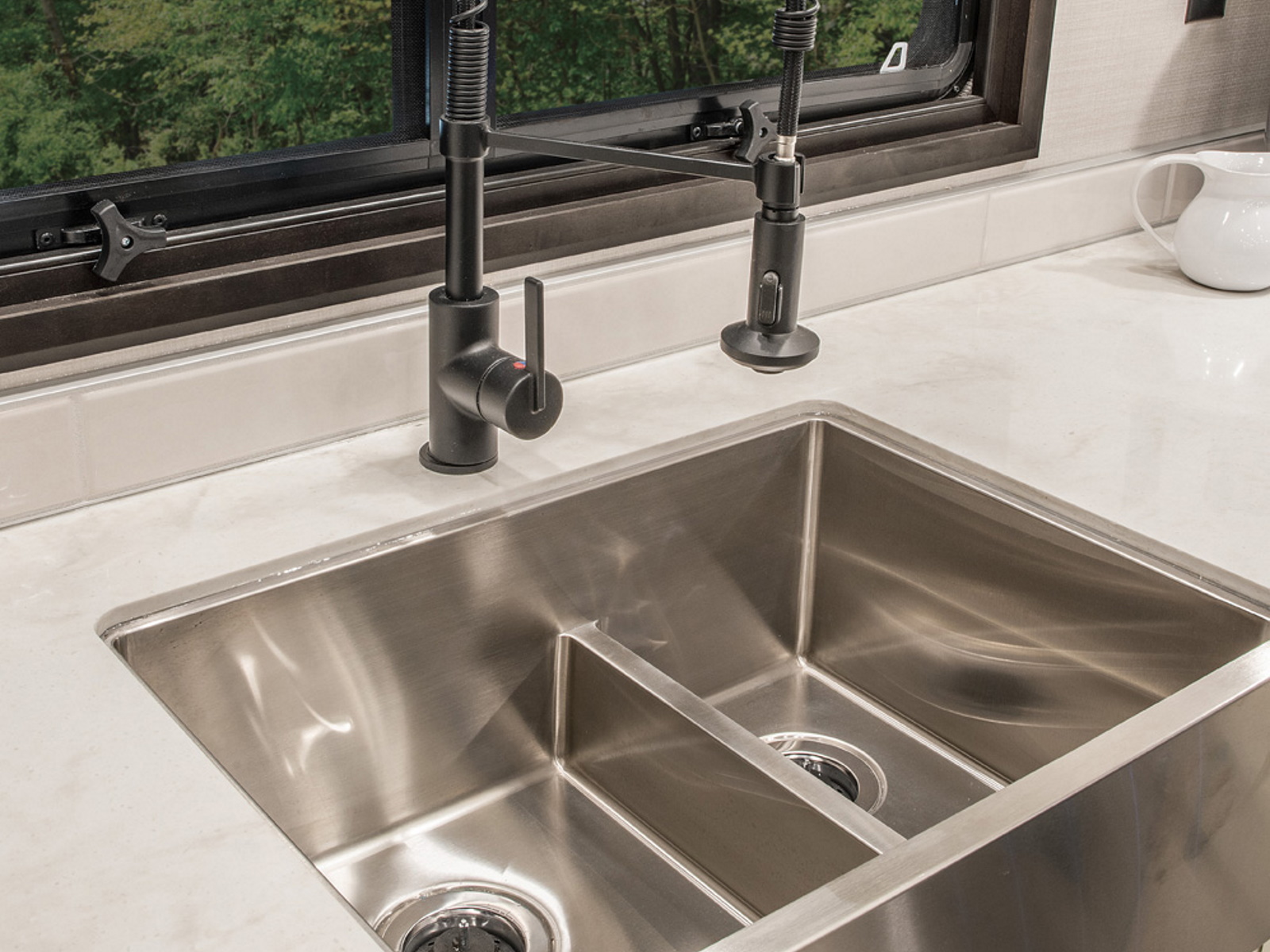

• Deep Double Bowl Stainless Steel Sink w/Sink Covers
• Residential Kitchen Faucet
• Custom Hand Laid Tile Backsplash

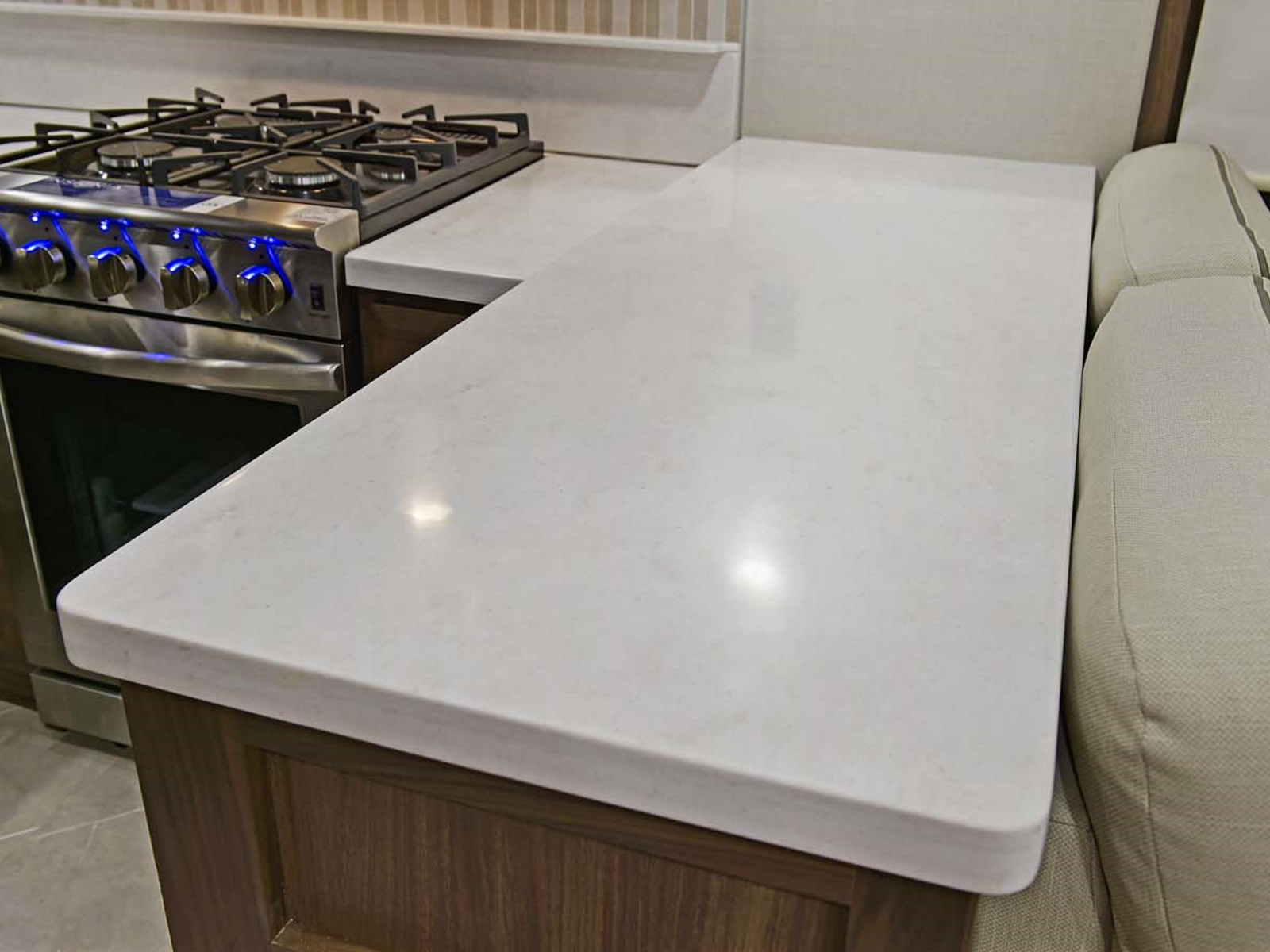

• High Polished Solid Surface Countertops
• Custom Appliance Garage w/Pull-Out Tray (Most Models)
• Custom Over the Island Accent Light
• Lighted Pantries & Kitchen/Bathroom Toe Kicks

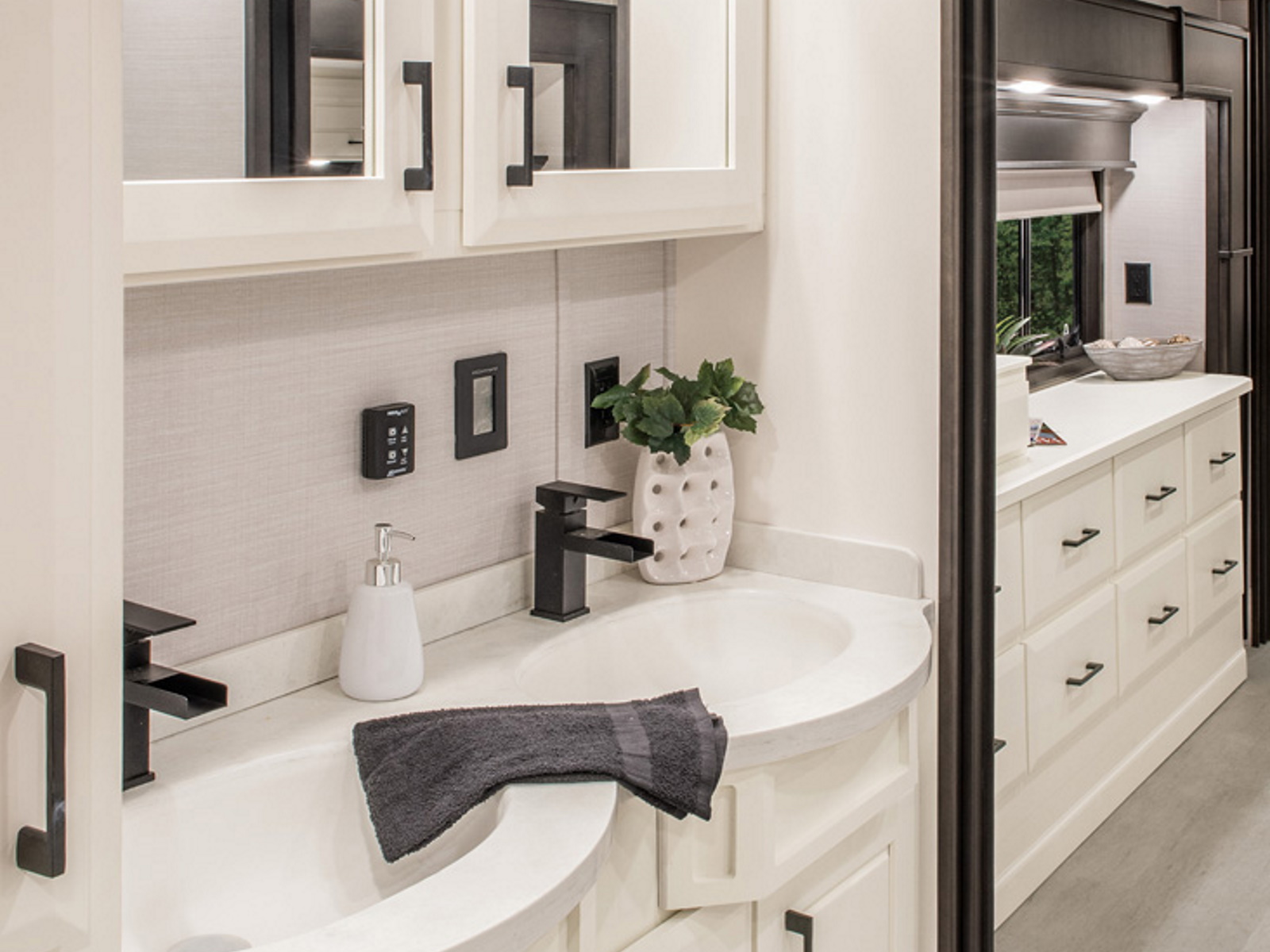

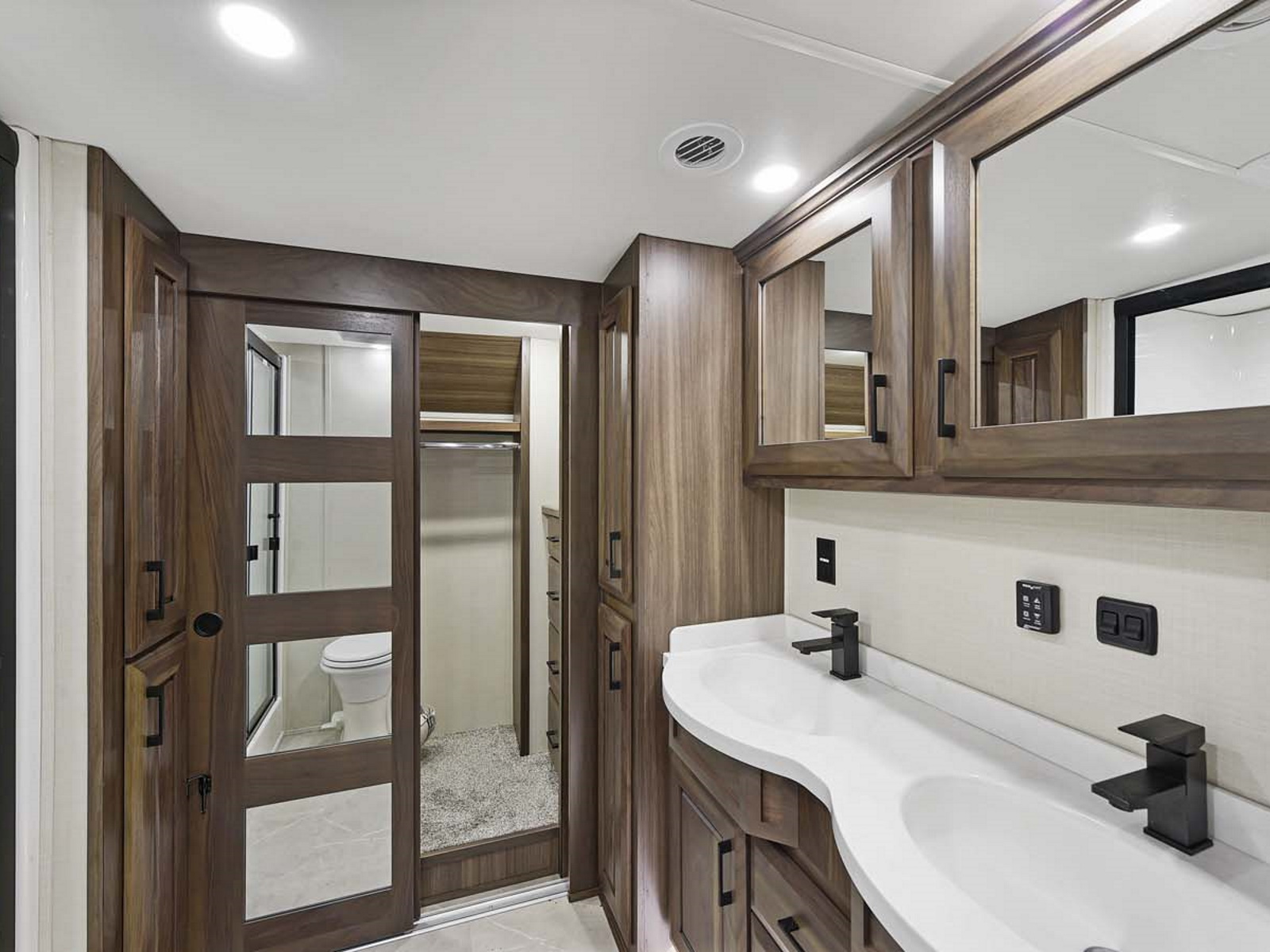

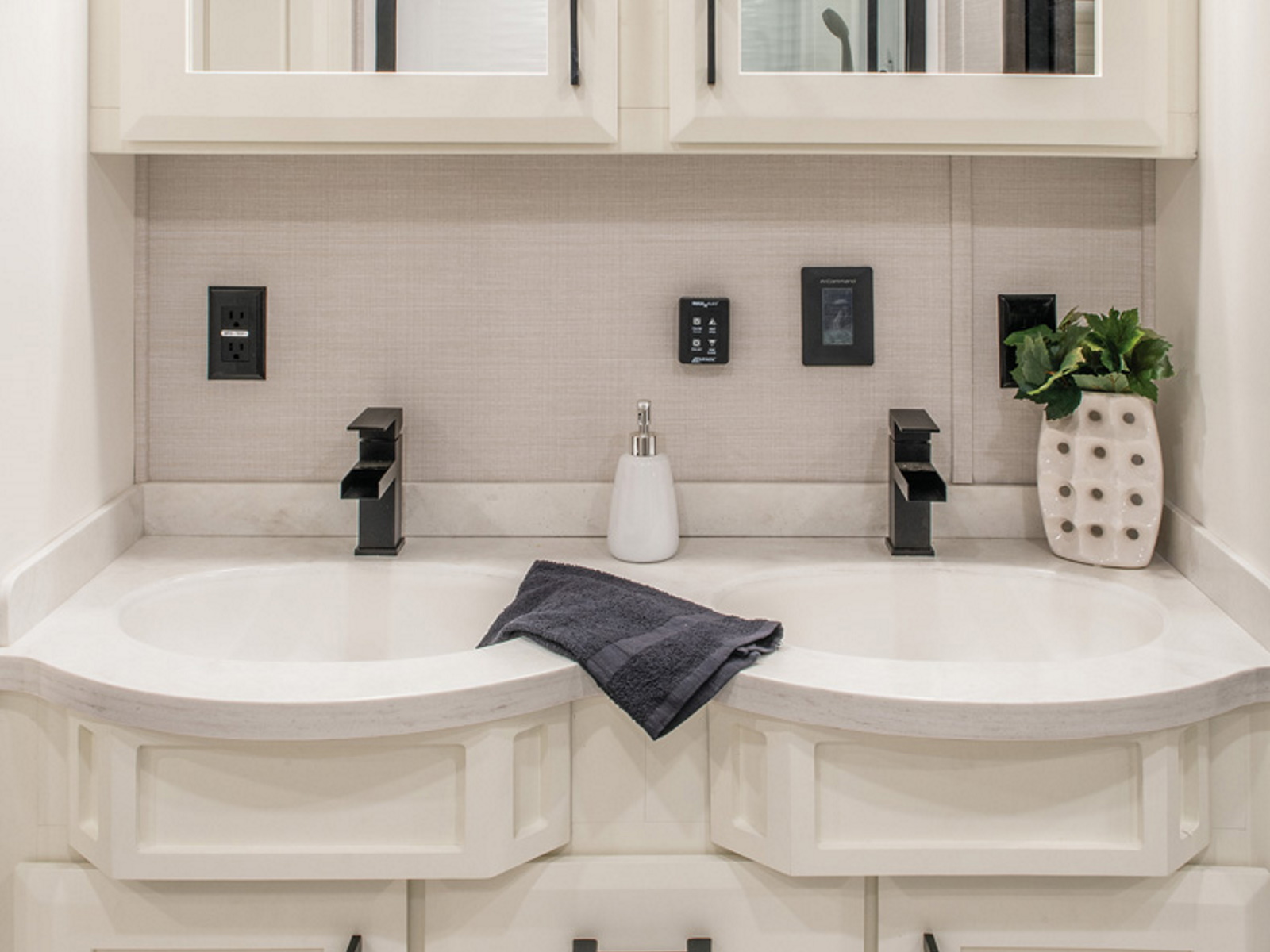

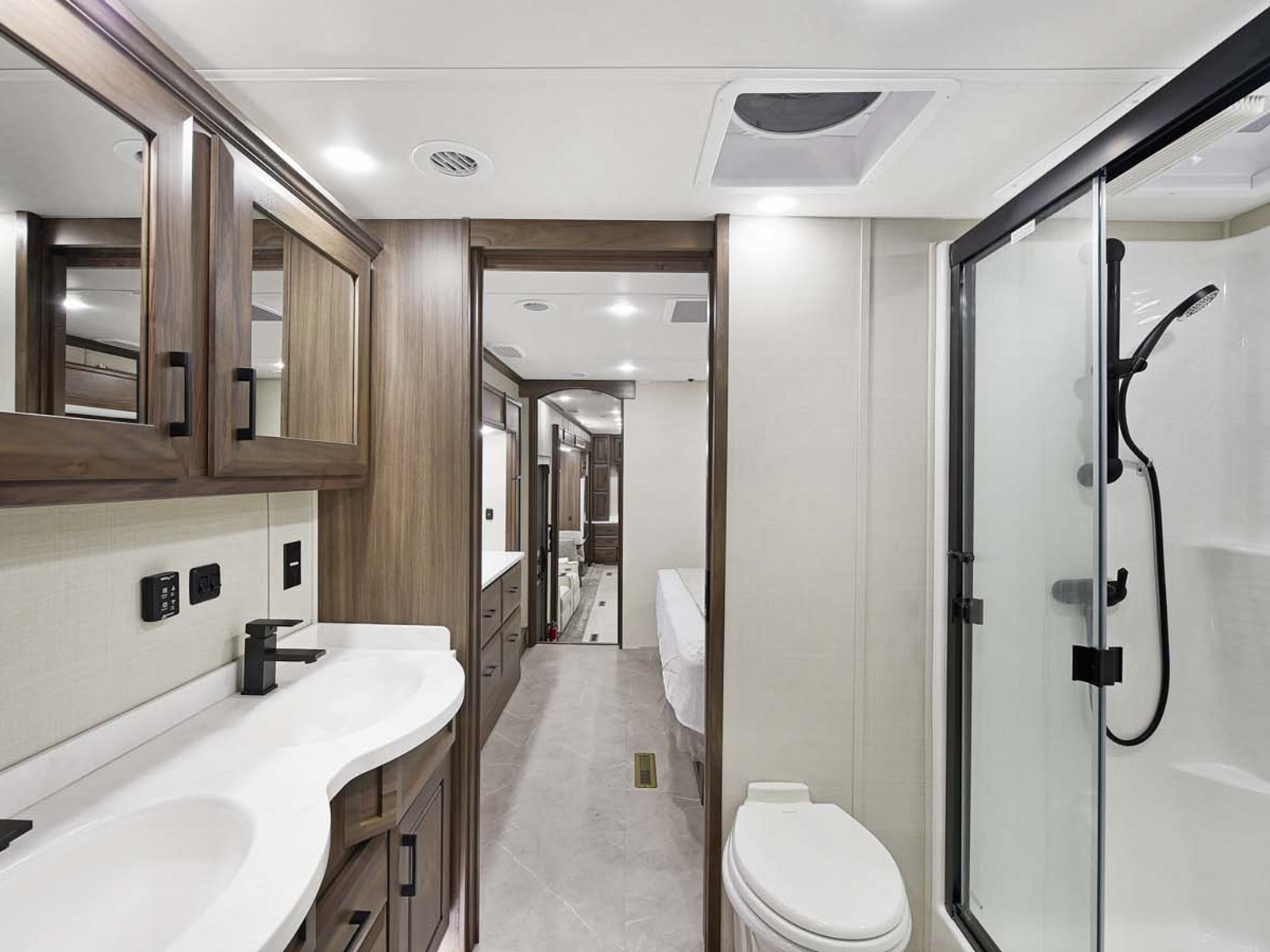

Interior - Master Bath/Hallway

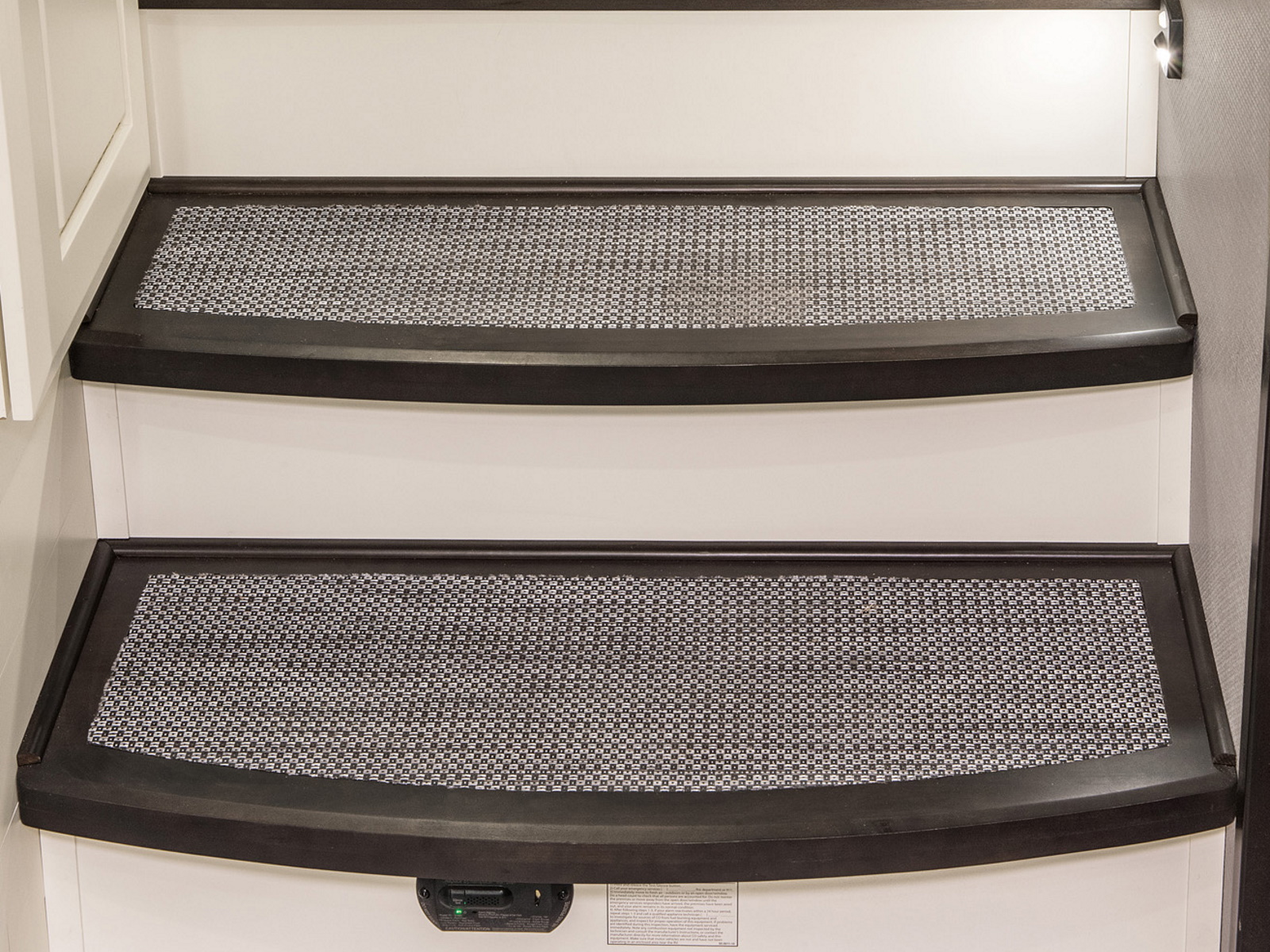

• Hardwood Steps with Woven Inlay
• Hand Laid Vinyl Plank in Hallway/Bathroom
• No Carpet in Hallway
• Washer/Dryer Prep
• Heat & A/C Ducting in Bathroom
• Powered Fan in Bathroom (Exhaust Only)
• Sky-Light Over Shower w/LED Pot Light

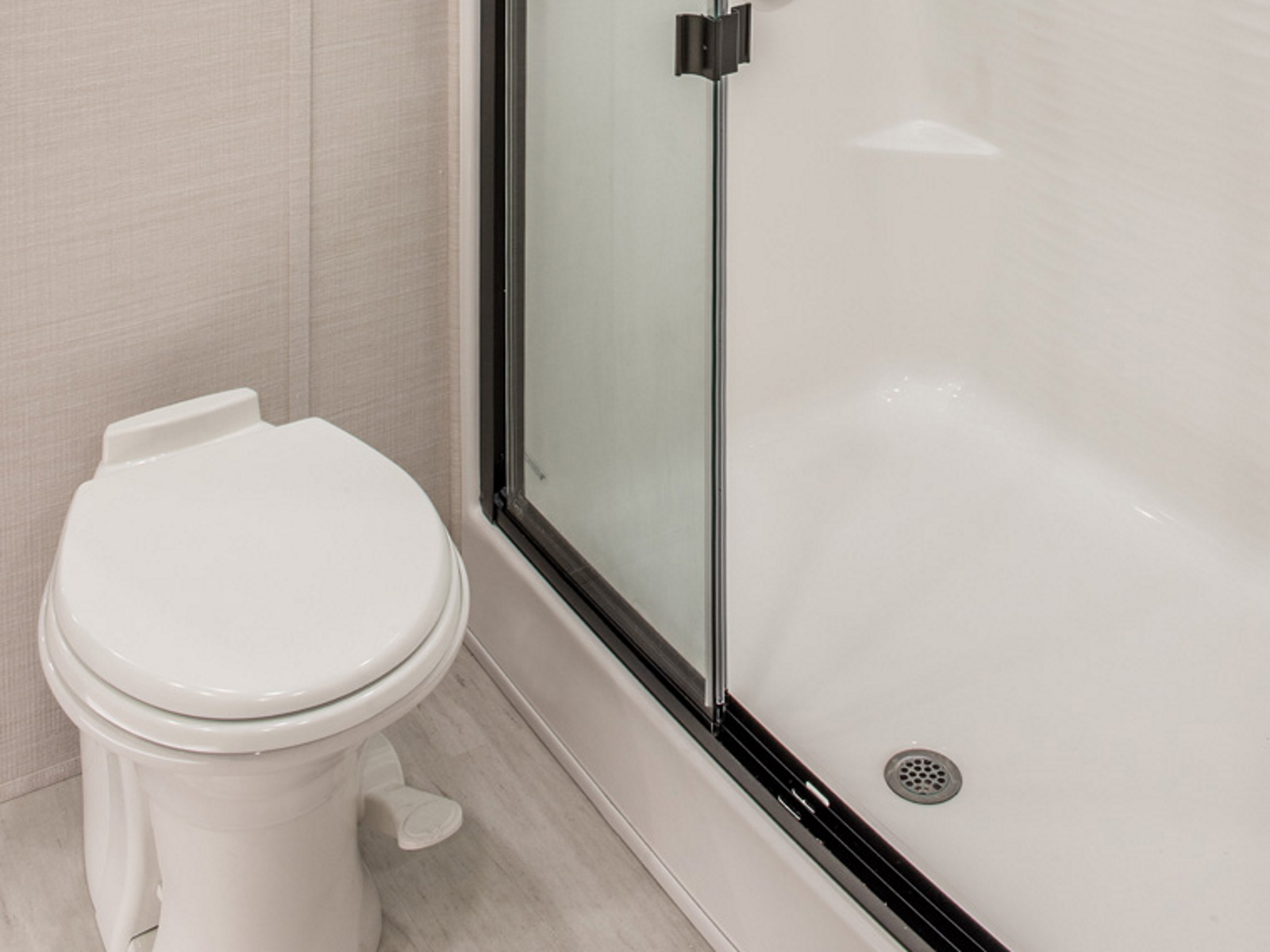

• Porcelain Toilet w/Water Saver Spray
• Fiberglass Shower Pan w/Full Height Decorative Shower Walls

Options
Optional FEATURES
Entertainment:

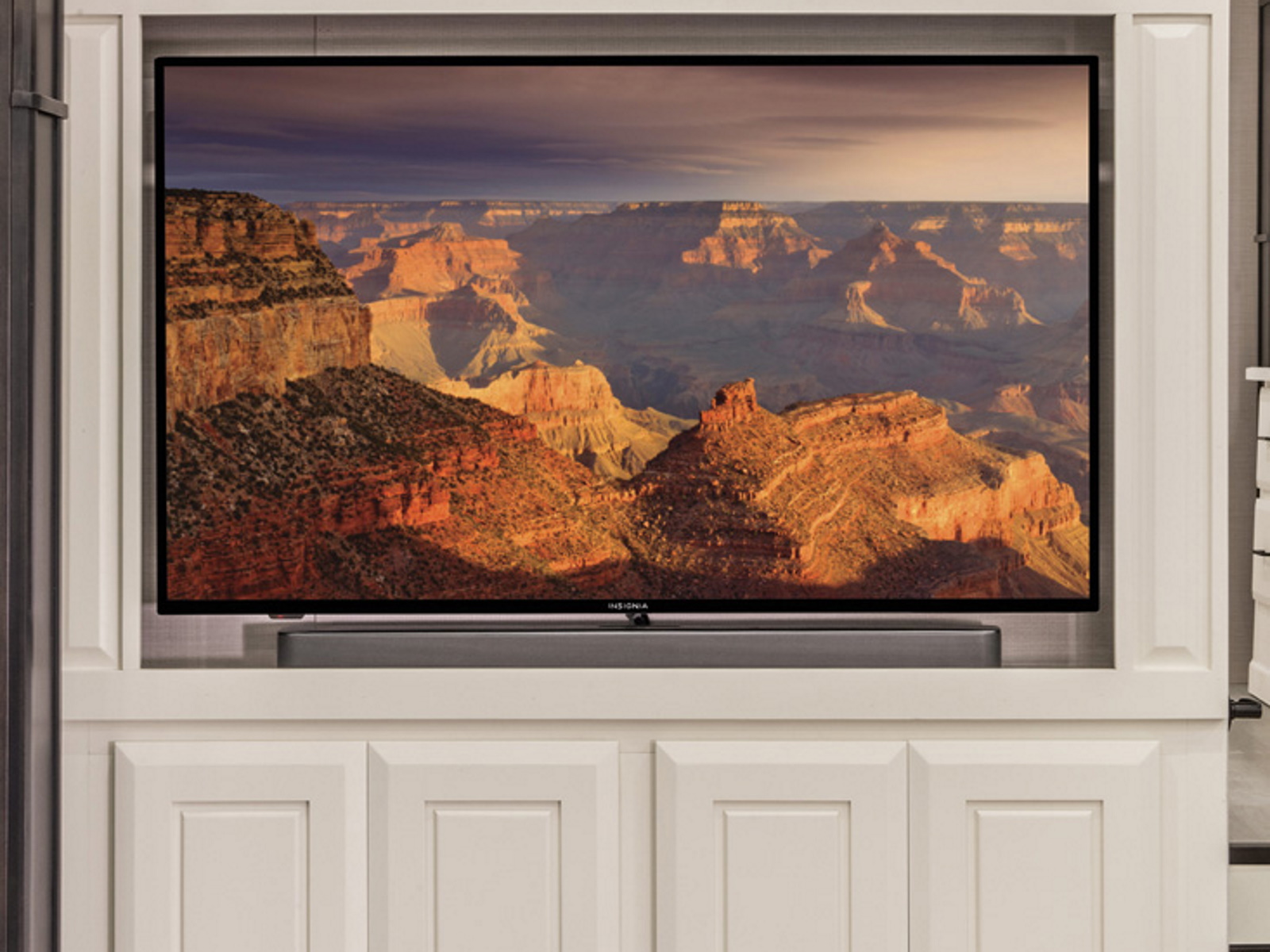

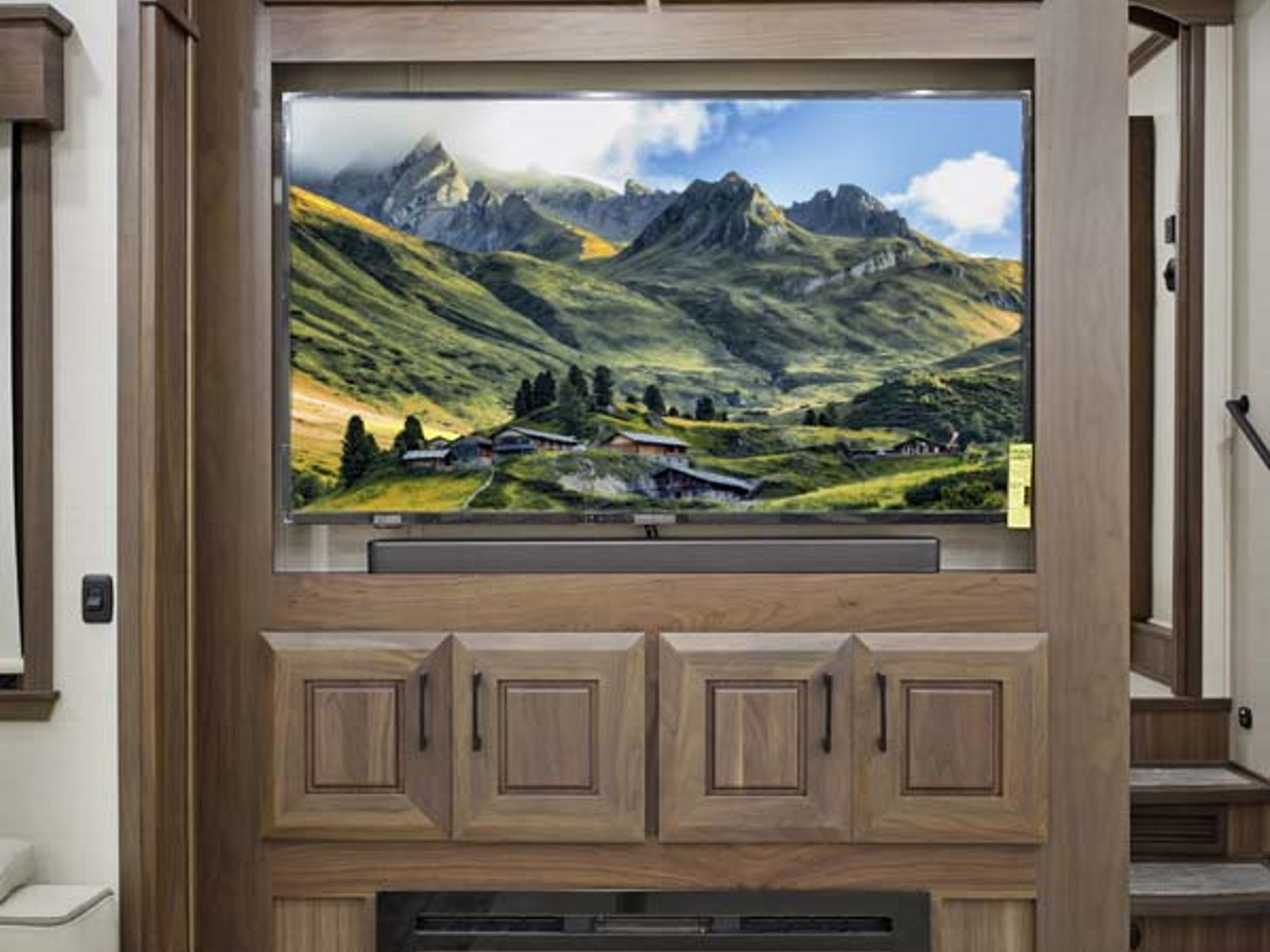

• 60″ LED Smart HDTV (Rear Entertainment Models Only)
• 32″ LED HDTV Outdoor Entertainment

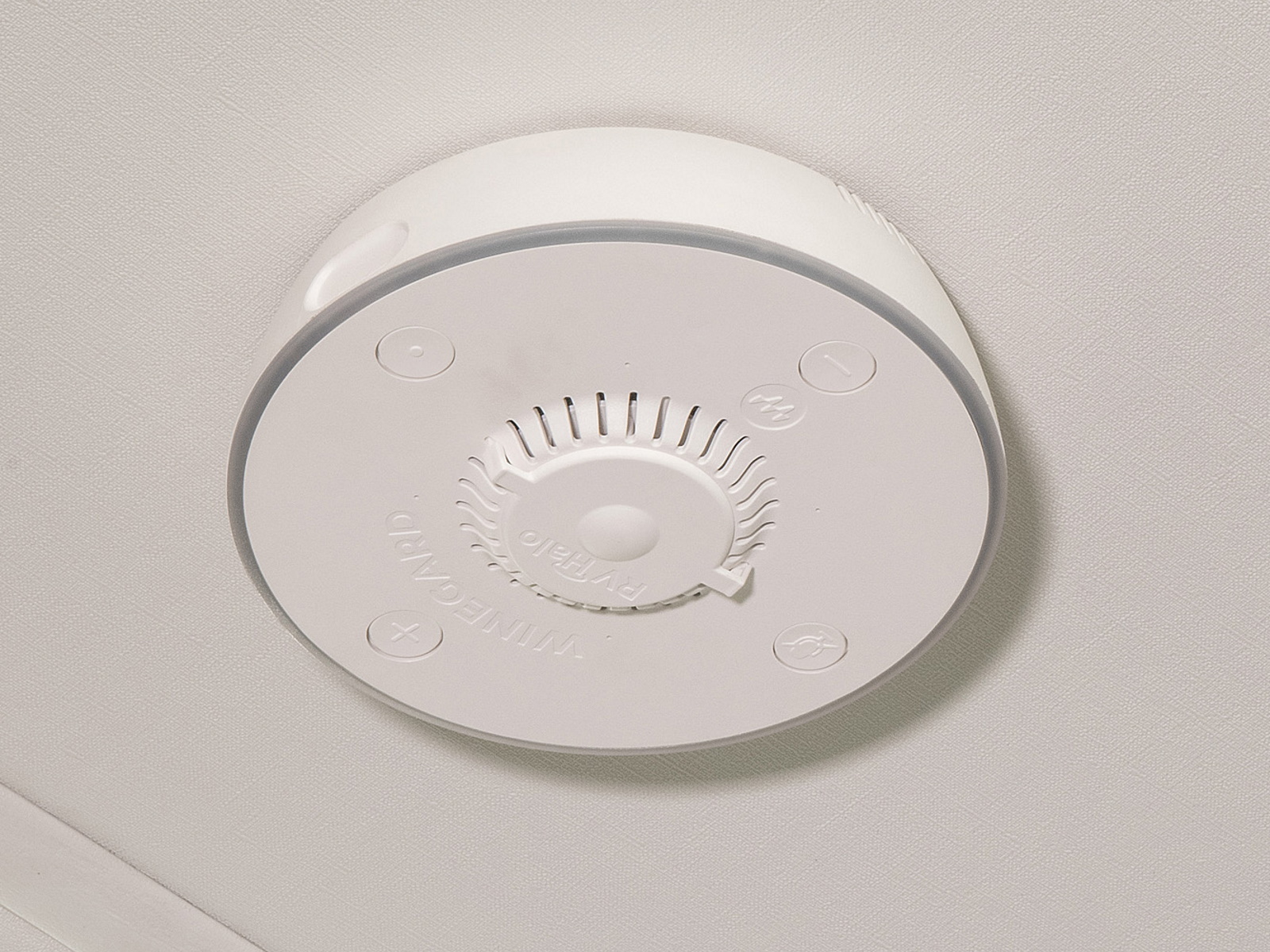

• Winegard® Trav’ler HD Auto Satellite

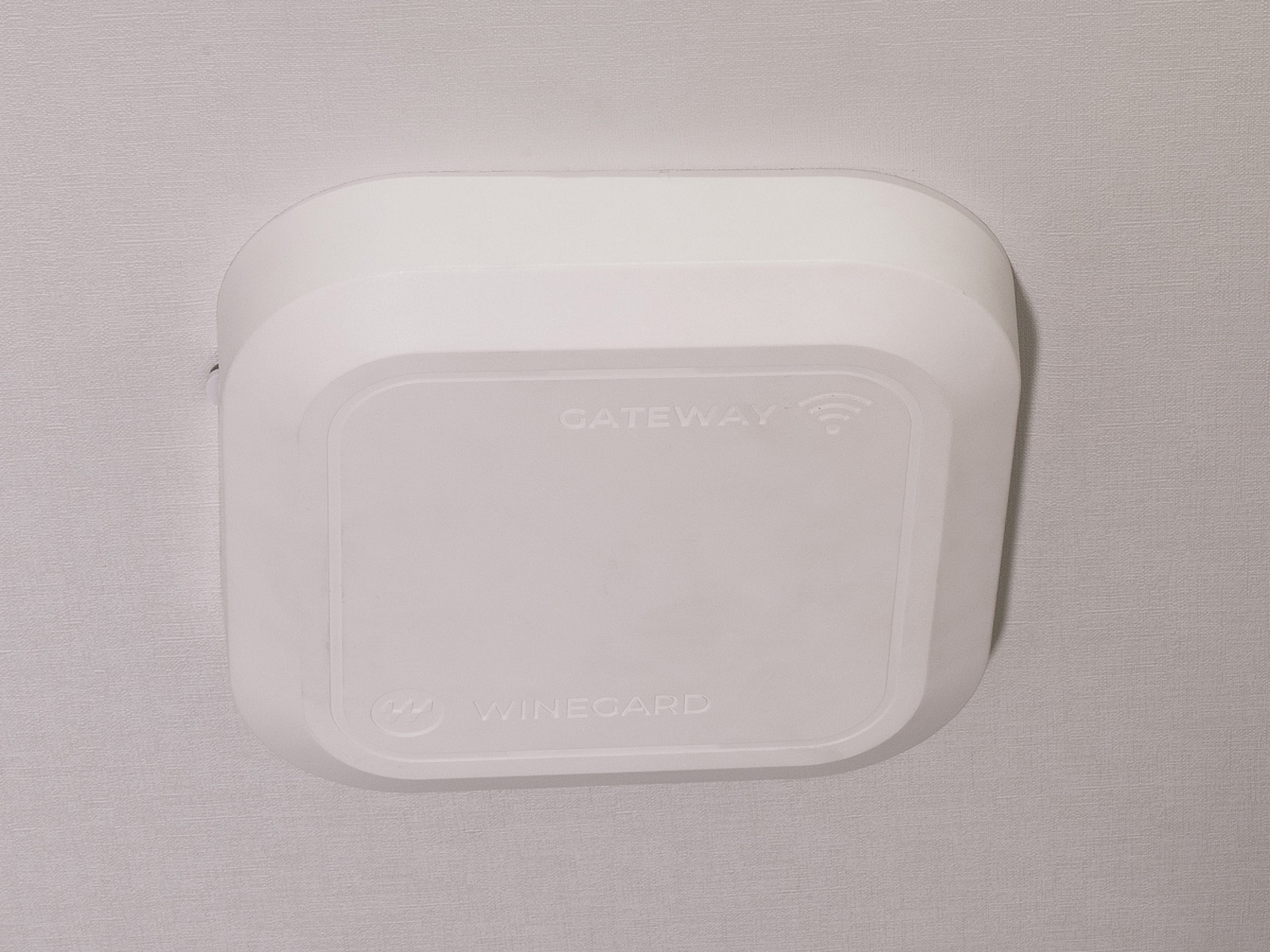

• WiFi Ranger Wireless Router

Bedroom:

• Built in Front Wardrobe Safe with Keyless Entry
• Queen Bed Suite
• MorRyde Bed Lift

Systems/Vents/Fans:

• 3rd 15 BTU Ducted Lo/Pro AC – Bedroom
• Heat Pump
• Max Air Fan with Rain Sensor and Switch Control – Bedroom
• Washer / Dryer Splendide® Front Load 2 Piece
• Generator Prep
• Onan® 5,500 Marquis Gold Generator with Prep
• 2,800 Watt Inverter with Four 6V Batteries
• Surge Protector with Voltage Protection & Remote Display
• Heat Pads on All Tanks w/Elbow Heater on Drain Pipe

Construction/Running Gear:

• Power Cord Reel
• HBA Brake Cam (To be Ordered Special for Customers w/GM Trucks)
• MORryde® Step Above

Exterior/Awnings

• Slide Toppers
• Power Dinette Slide Patio Awning w/Weathershield
• Slide Out Storage Tray (36″ x 90″)
• Audible Wireless Backup Camera System
• One Piece Molded Fiberglass Roof (Standard with Elite Packages)

Elite Package:

• One Piece Fiberglass Roof (N/A on Full House)
• Custom Molded One Piece Fiberglass Fender Skirts
• Custom Full Body Paint Scheme w/Window Silks and Striping on Slide End Walls
• High Polished Quartz Countertops
• Power MCD Roller Shades
• Lighted Wood Valances
• ASA In-Command System
• Select Comfort Mattress

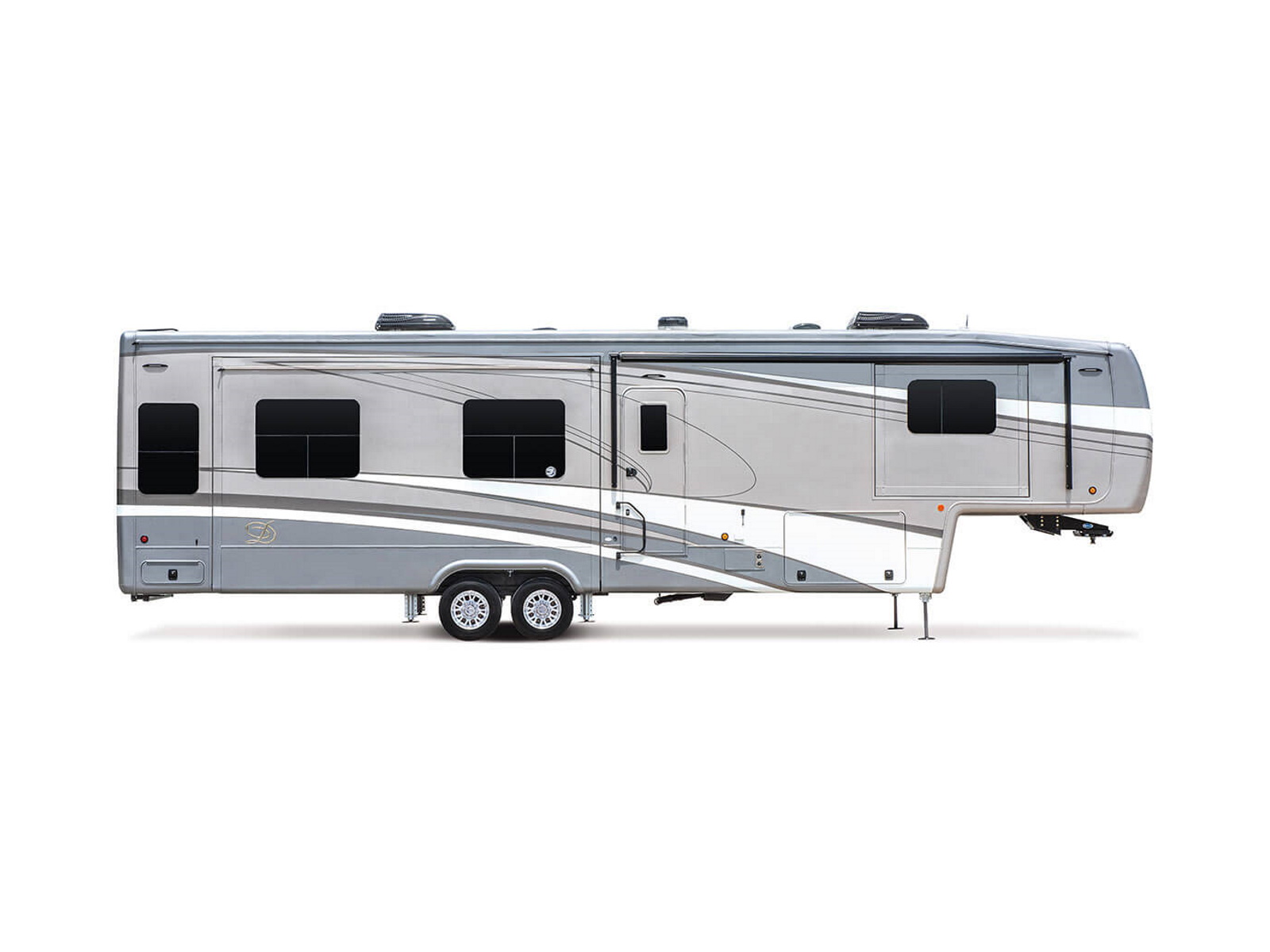

• Capetown Veil Exterior

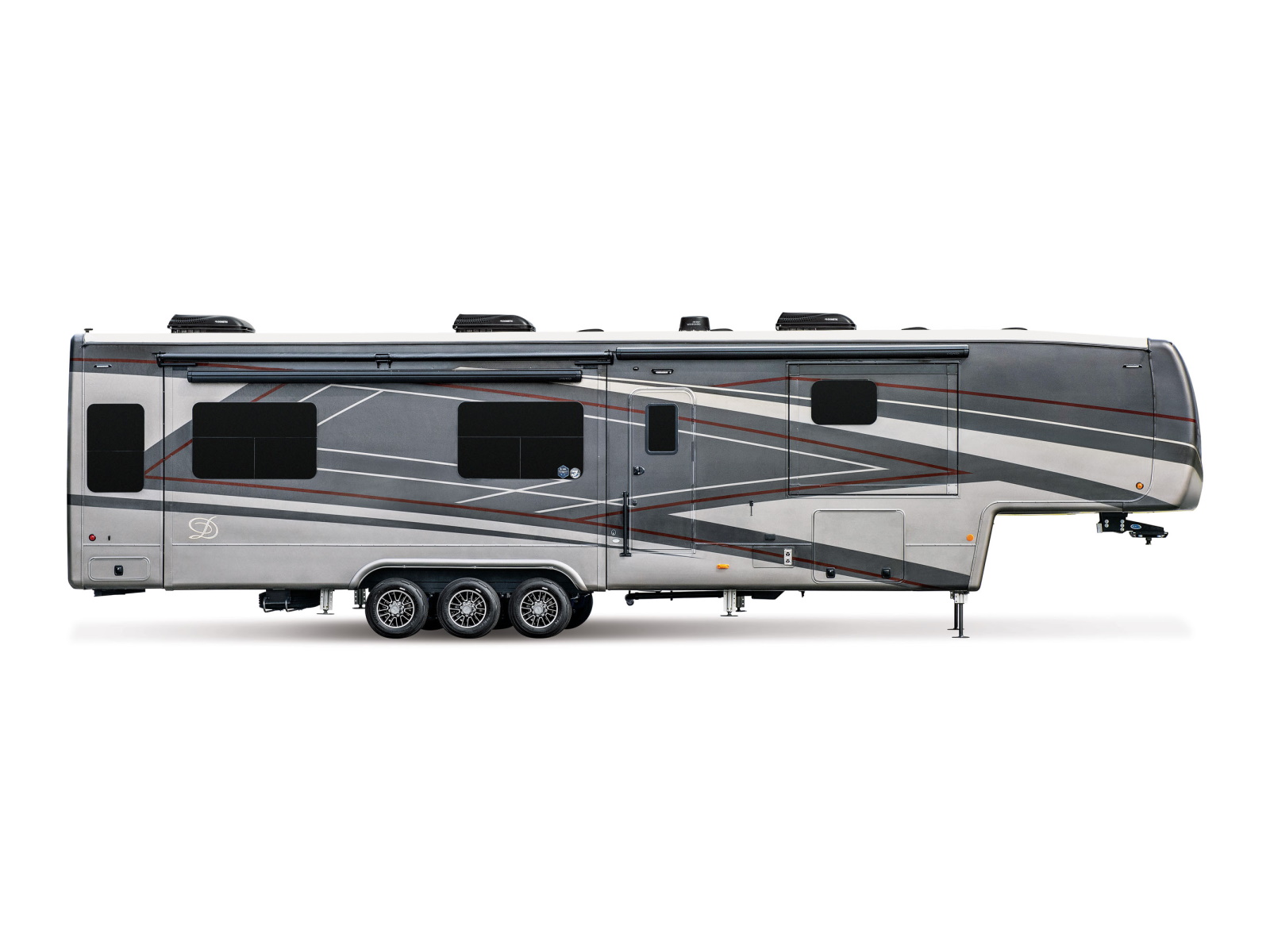

• Arctic Mist Exterior
