2027 Jayco Granite Ridge 22T Bluff Full-Body Paint

2027 Jayco Granite Ridge 22T Bluff Full-Body Paint

2027 Granite Ridge

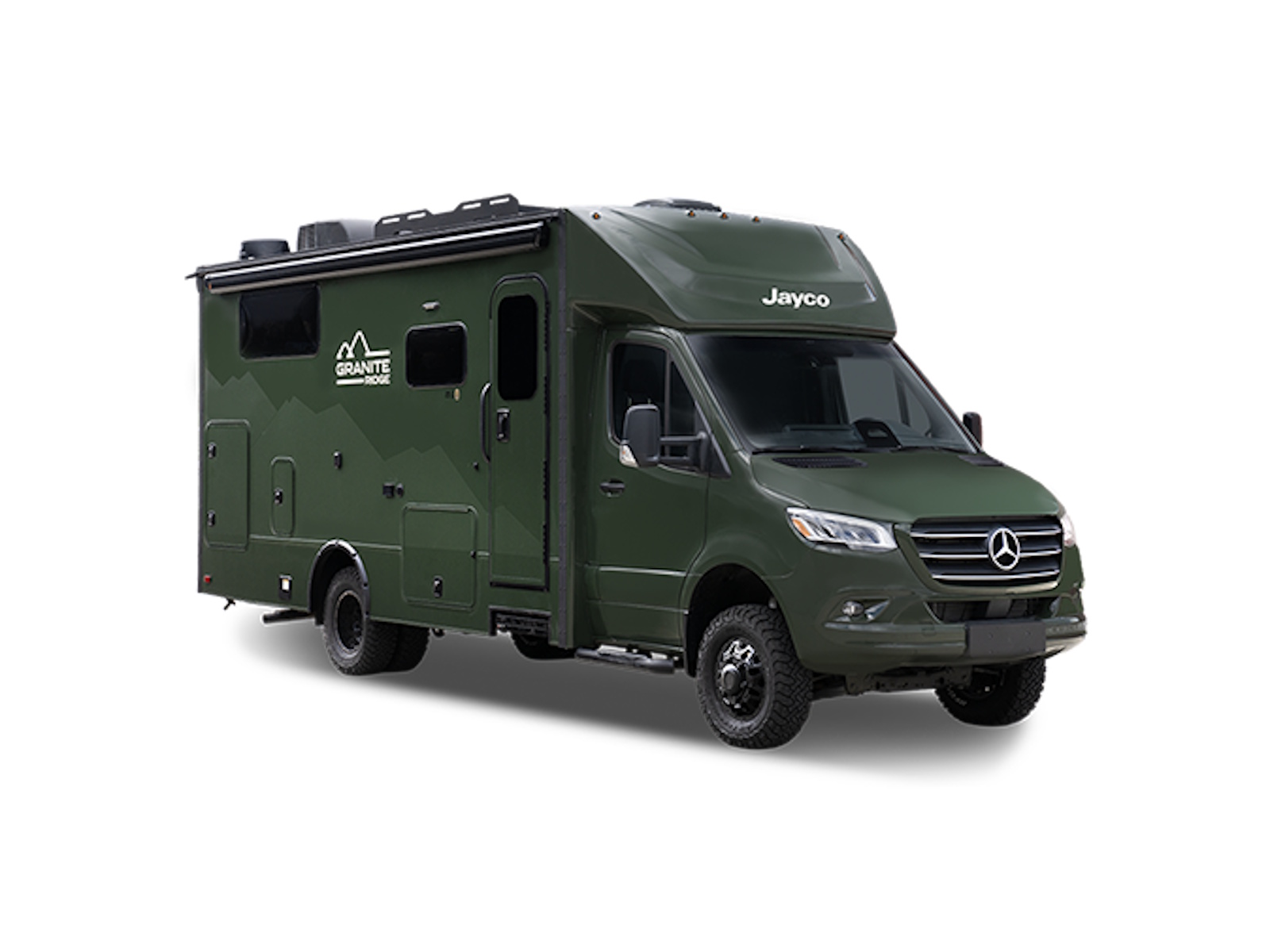

The 2027 Jayco Granite Ridge is ready for adventure, built with rugged capability and confidence-boosting features that let you explore farther and stay longer. With a massive heated rear garage, this Class C motorhome is ready to take you and your large adventure gear to the most remote locations.

The Granite Ridge is available on two chassis options to match your travel style. The 22T is built on the Ford® Transit 350HD AWD chassis featuring a powerful 3.5L EcoBoost V6 gas engine. The 22T is a more affordable gas option that still packs serious capability. For those seeking even more performance, the 23S rides on the Mercedes-Benz® 3500 AWD diesel chassis, delivering a premium experience on and off the road.

The 23S upgrade brings even more to the table, including additional ground clearance, an 18-inch longer overall length, all-terrain tires, a roof rack with a collapsible ladder, standard Starlink satellite internet, Molle panels in the rear garage and a portable wireless bluetooth speaker for music around the campsite. You’ll also enjoy Firefly total coach control system app integration for smart tech convenience right at your fingertips.

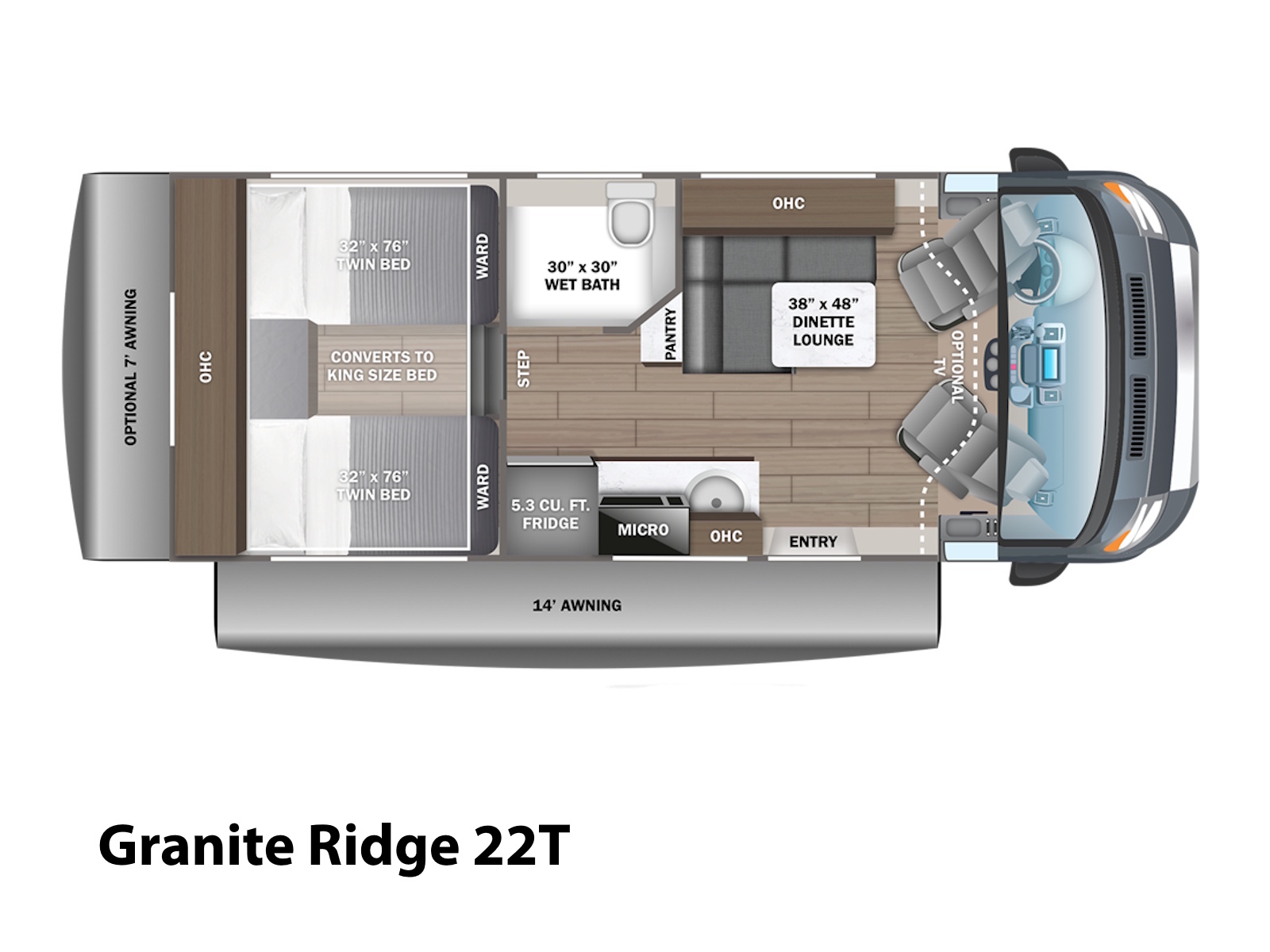

No matter which chassis you choose, Granite Ridge is built to go further. Two-inch walls, enclosed holding tanks, and dual-pane acrylic windows help extend your travels into colder seasons. Both floorplans include a lounge area behind the captain's chairs, twin beds in the rear that convert to a large bed by adding a filler cushion, a wet bath and a kitchen featuring a refrigerator, stainless steel sink and portable induction cooktop.

The Granite Ridge is all about traveling your way. Choose from optional features like a 7-foot rear awning, slide-out kitchen, or the smart LED TV with mounts in both the cab and outside. However you like to camp, the Granite Ridge gives you the confidence, comfort and customization to make the journey your own.

Features May Include:

Chassis Equipment for 22T

• Ford® Transit 350HD AWD chassis
• 156 in. wheelbase
• GVWR - 11,000 lb.
• GCWR- 15,000 lb.
• 3.5L EcoBoost V6 310 HP engine with 400 ft-lb. torque
• 10-speed transmission
• (2) 12V AGM chassis batteries (70 amp-hr)

Exterior Equipment for 22T

• TuffShell™ vacuum-bond laminated roof, floor and sidewalls
• One-piece, seamless, fiberglass roof
• Dual-pane acrylic windows (N/A entry door)
• Heated rear garage
• L-track, (2) 120V charging ports and (1) 12V charging port in garage
• Electric patio awning with motion sensor and LED lights
• TV and FM Booster Antenna
• 2,800W gas generator with auto-gen start
• 30-amp electrical service
• LP quick-connect hookup
• Outside shower
• Centralized water filtration system
• Expandable side port with second dual bank controller for solar
• Backup camera
• One-piece fiberglass front cap

Interior Equipment for 23T

• Firefly Multiplex system
• 18,000 BTU air conditioner
• Timberline Binar 5D hydronic heating system
• Adjustable table with mount
• 12V Refrigerator
• Portable single burner induction cooktop
• Convection microwave
• Stainless steel sink
• All-in-one wet bath with cassette toilet
• Smoke alarm
• Carbon monoxide detector
• Fire extinguisher
• Aqua View® SHOWERMI$ER™ water management system
